Removing Shock Absorber Fork

WARNING: This page is about a different variant/trim than selected.
  1. Loosen tie-rod ball -1-  from the wheel bearing housing -2-  .

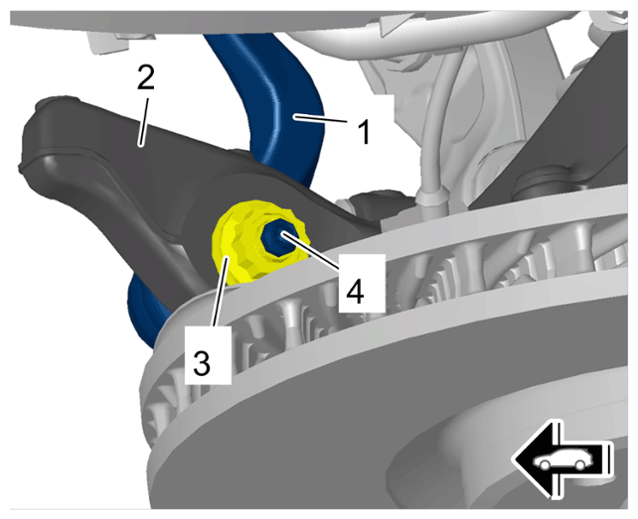

    G15155907Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tie-rod ball on wheel bearing housing

    1. 1.1 Unscrew nut -3-  as far as required on joint pin -4-  for tie-rod ball -1-  until it is flush with the upper edge of the joint pin -4-  .
    2. 1.2 Press off joint pin -4-  for tie-rod ball -1-  using > T40010 - ball joint puller  .
    3. 1.3 Unscrew nut -3-  from joint pin -4-  , counter at the hexagon socket of the joint pin -4-  and remove tie-rod ball -1-  from wheel bearing housing -2-  .
  2. Unscrew nut -1-  and remove connecting link -2-  for front angle sensor for headlight beam adjustment from the lower trailing arm.

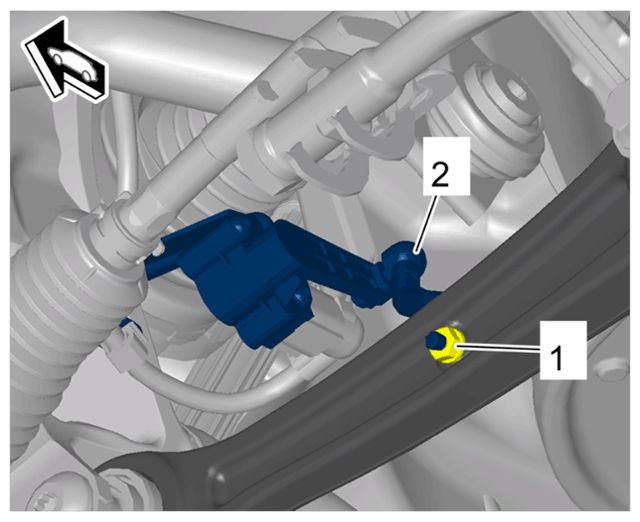

    G15155908Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front angle sensor for headlight beam adjustment on lower trailing arm

  3. Unscrew screw -4-  securing connecting link for anti-roll bar to shock absorber fork -1-  .

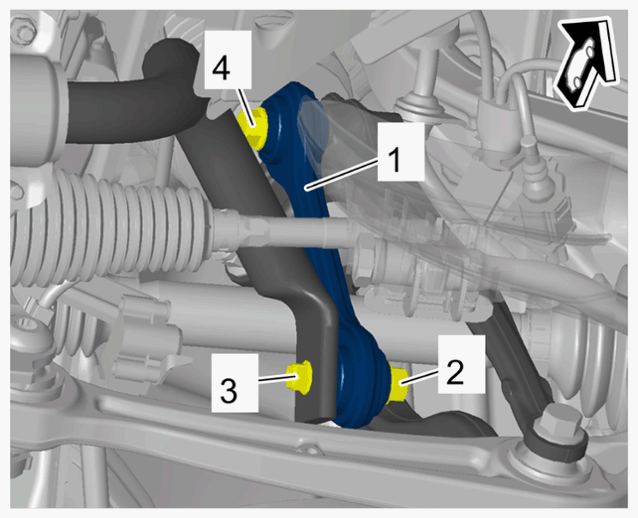

    G15155909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Connecting link for anti-roll bar

    1. 3.1 Raise the wheel suspension as far as required on the opposite side using > VAS 6931 - engine and gearbox jack  so that the screw can be unscrewed -4-  without any great resistance or load.
  4. Support the wheel bearing housing to prevent the wheel bearing housing from tilting.

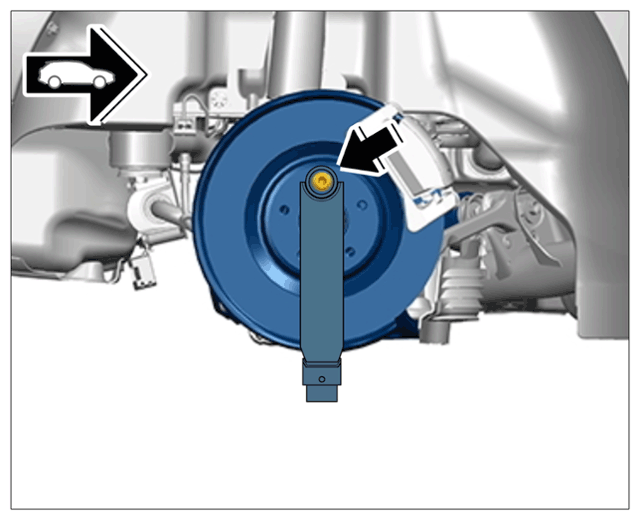

    G15155910Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Support T10149 on wheel hub

    1. 4.1 > T10149 - Support  must be fitted on > VAS 6931 - engine and gearbox jack  .
    2. 4.2 Turn the wheel hub until one bore is at the highest position and secure > T10149 - support  at the very top bore of the wheel hub using a wheel bolt -Arrow-  . > Support T10149 on wheel hub
  5. Loosen upper trailing arms -1 and 2-  from wheel bearing housing -5-  .

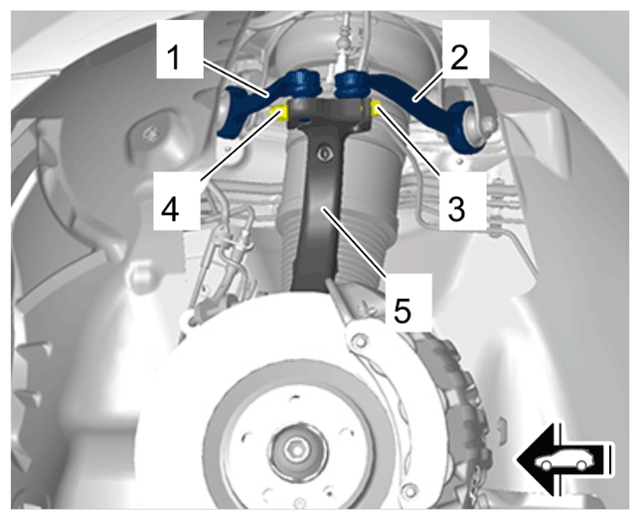

    G15155911Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper trailing arm on wheel bearing housing

    1. 5.1 Unscrew clamping screw on wheel bearing housing -3-  and counter at the nut -4-  at the same time.
    2. 5.2 Pull upper trailing arms -1 and 2-  out of the wheel bearing housing -5-  .
  6. Remove shock absorber fork -1-  .

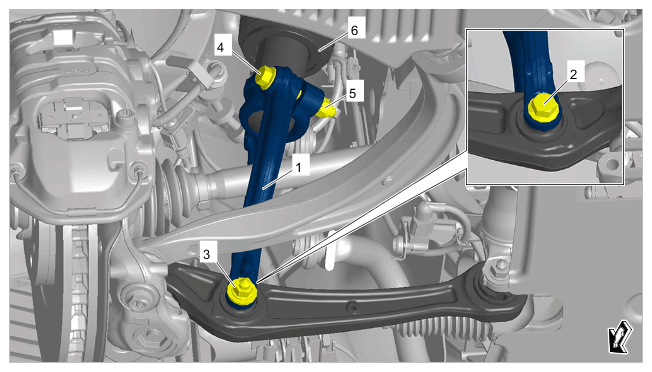

    G15155912Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Shock absorber fork

    1. 6.1 Unscrew screw securing shock absorber fork to lower trailing arm -2-  and counter at the nut -3-  at the same time.
    2. 6.2 Unscrew clamping screw securing shock absorber fork to spring strut -4-  and counter at the nut -5-  at the same time.
    3. 6.3 Open up shock absorber fork clamp -1-  using > 3424 - spreader  > 3424 - spreader  .
    4. 6.4 Pull shock absorber fork -1-  down off the spring strut. Carefully pull the wheel bearing housing down slightly if necessary.
