Removing Heat Shield
WARNING: This page is about a different variant/trim than selected.

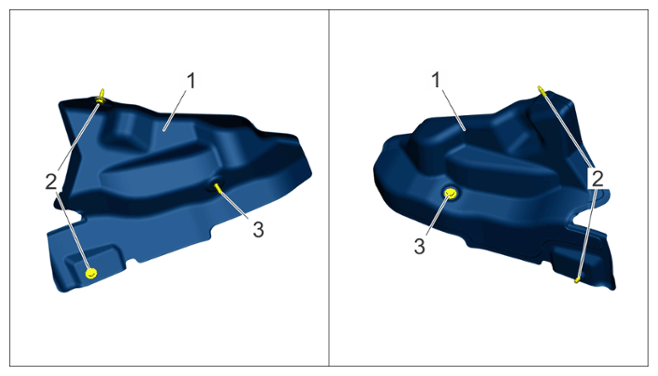

Installation overview - heat shield -1-
:
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Installation overview of heat shield

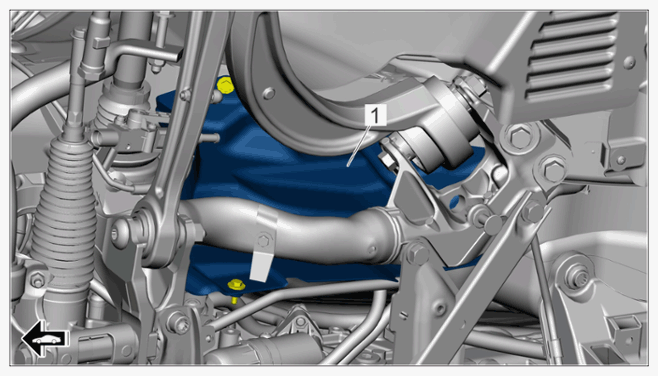

- Unscrew screws on the heat shield -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws on heat shield
- 1.1 Unscrew M6 screws -2-
.
- 1.2 Unscrew M8 screw -3-
.
- Remove heat shield.
