Tools And Materials

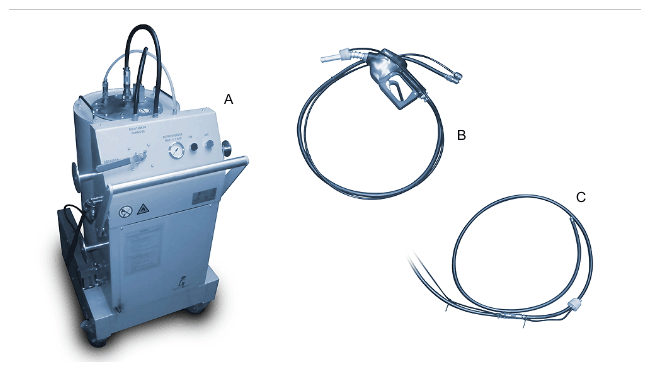

Fuel transfer unit with accessories
| A | > VAS 5190A - Fuel extractor |
| B | Special accessory: fuel nozzle (The fuel nozzle switches off automatically when the fuel tank is full) |
| C | Suction line with venting device (rubber taper with transparent hose) |

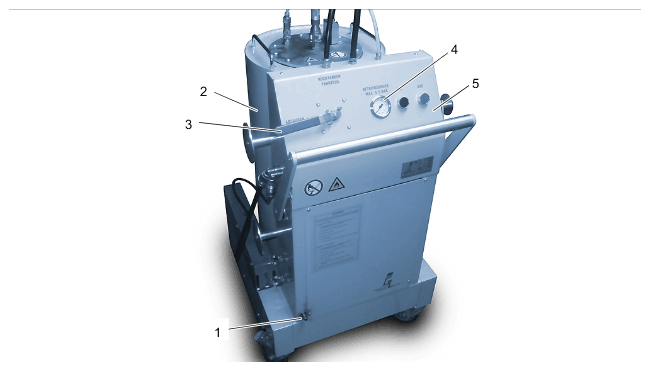

Overview of fuel transfer system
| 1 | Compressed air connection (connection for unlubricated/oil-free compressed air) |
| 2 | 110 litre fuel tank (exchangeable tank, the scale on the side starts at 10 litres. All other markings are shown in 5-litre steps) |
| 3 | Changeover lever (for extracting fuel/refuelling vehicle) |
| 4 | Operating pressure display of the pump (The pressure must not exceed 6.5 bar) |
| 5 | On/Off switch for pump |

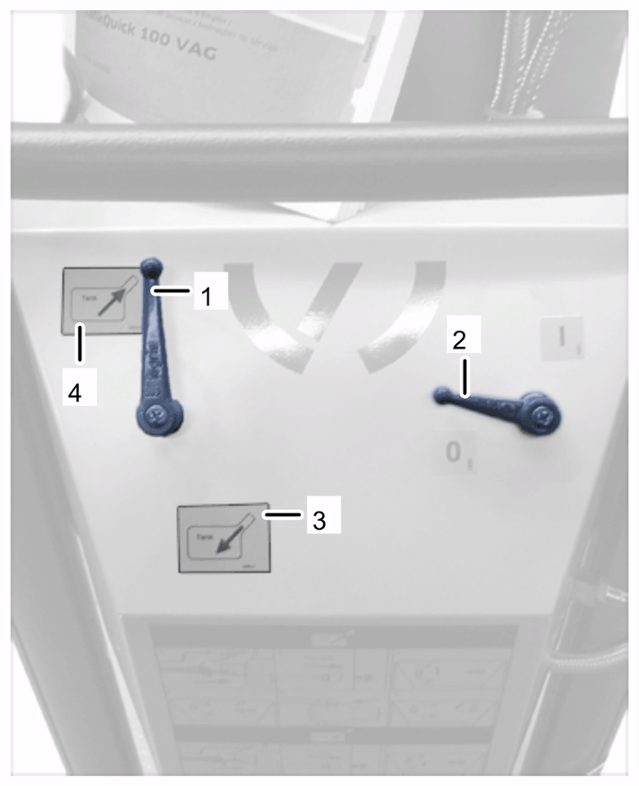

Using VAS 5190 A
| 1 | Set changeover lever to pump out/fill |
| 2 | On/Off switch |
| 3 | Lever position: fill |
| 4 | Lever position: pump out |
