Subsequent Work

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin
1. → Ventilate the work area well.
2. → Never ingest or inhale.
3. → Read specific information on the Hazard Sheet.
4. → Wear personal protective gear.
5. → Do not smoke, eat or drink in the work area.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion
1. → Avoid contact with hot parts or sources of ignition.
2. → Use suction to remove ignitable vapours.
3. → Attach warning sign in a clearly visible position.
4. → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
5. → Secure collection containers/vessels to prevent them from tipping over.

V. A. G 1318 - K-Jetronic Tester must now be removed.
1. 1.1 Relieve pressure in the system.
2. 1.2 Loosen clamp or screw-type clamp and disconnect hoses from > V. A. G 1318 - K-Jetronic Tester .
3. 1.3 Catch escaping fuel using suitable aids.

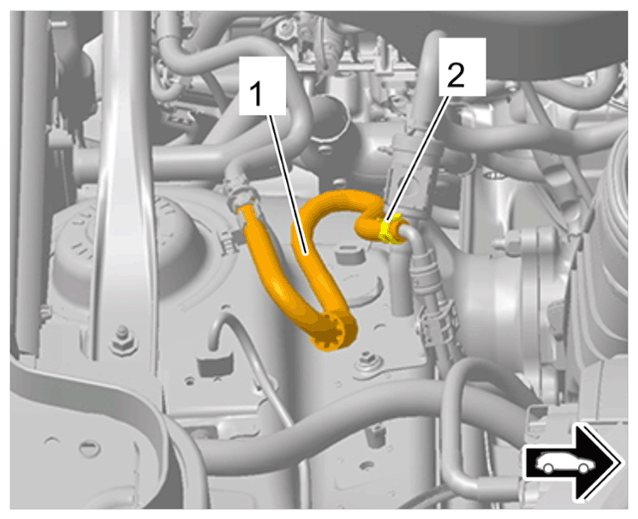

Connect fuel low-pressure supply line -1- and secure spring band clamp -2- using > VAS 6890 - spring band clamp pliers .

G15150839

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel low-pressure supply line
