Disassembling Key

  1. Disengage locking mechanism -arrow A-  and pull emergency key approximately 15 mm out of the remote control -arrow B-  .

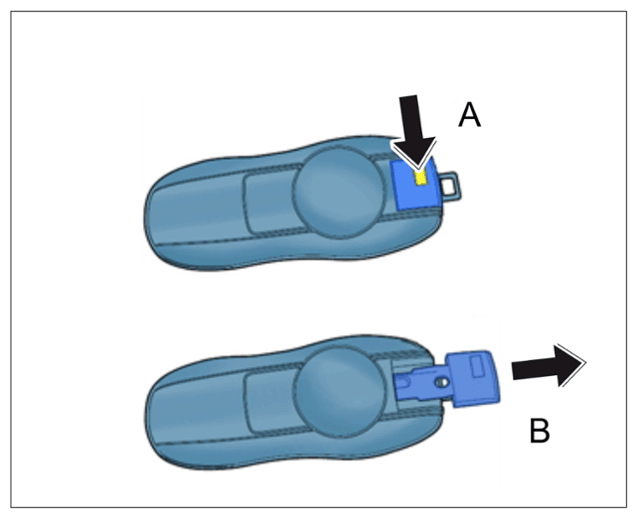

    G15159141Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency key

  2. Remove the battery.

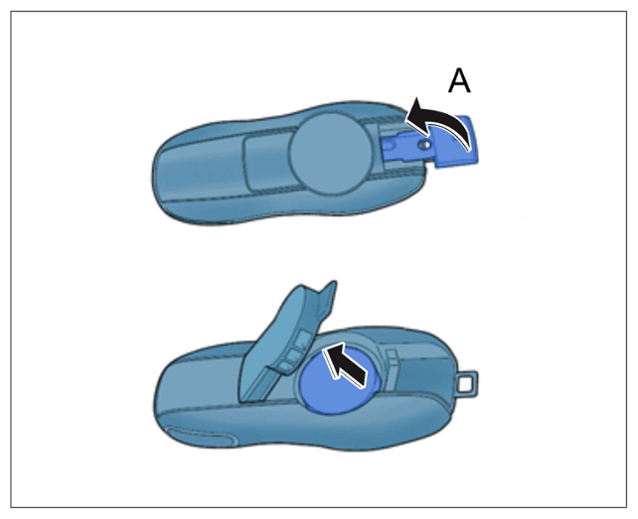

    G15159142Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Battery

    1. 2.1  Fold up battery compartment lid with emergency key -arrow A-  .
    2. 2.2  Remove battery from remote control -Arrow-  .
