Coding Emergency Call System

NOTIFICATION

Voltage drop

Risk of irreparable damage to control unit
Risk of damage to control unit
Fault entries in the control unit
Coding in the control unit is aborted
Malfunctions in control unit, even during programming
1. → Prior to disconnecting the control unit, switch off ignition and remove ignition key.
2. → Ensure that the power supply is not interrupted during programming.
3. → Connect a battery charger with a current rating of at least 90 A to the vehicle battery.

Information

If the ERA GLONASS control unit is replaced, the following information must be sent to ivsactivation@aoglonass.ru:

ICC ID
VIN (Vehicle Identification Number)
Body number
Brand
Model
Colour

The CSV file must not be bigger than 75 kByte.

The information in the CSV file should be UTF-8-encoded.

Information

The PIWIS Tester instructions take precedence since the description may be different with later Tester releases.

The procedure described here has been structured in general terms. Different text or additional information may appear on the PIWIS Tester.

Information

IMPORTANT: The emergency call system is only ready to use after carrying out commissioning and after successfully making the test call!

If commissioning fails or if the test call for the emergency call system fails, a vehicle analysis log (VAL) must be created using the > 9818/ET 500 - Y-connector, Russia and the importer must be contacted.

A vehicle with an emergency call system that is not fully functional cannot be handed over to the customer!

If the emergency call system issues the announcement "Test failed", the activation process has failed even if the LED on the SOS button is permanently green.

Connect the Tester to the service disconnector using > 9818/ET 500 - Y-connector, Russia . Switch on ignition.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PIWIS Tester connection

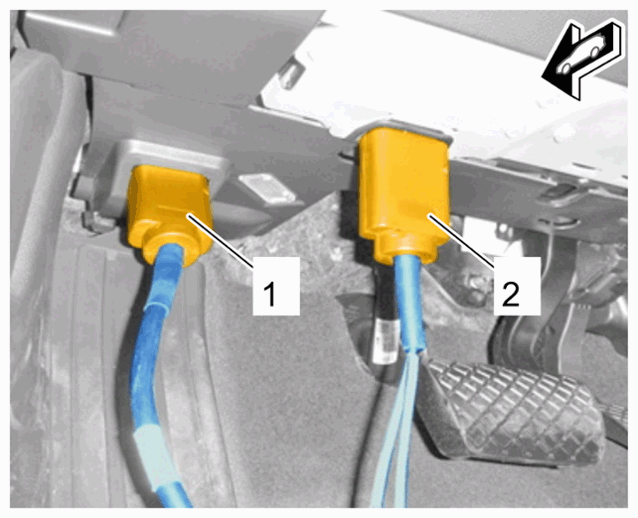

IMPORTANT: Connect the red cable -2- to the emergency call system (ERA GLONASS) socket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PIWIS Tester connection
Connect the black cable -1- to the service disconnector socket in the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PIWIS Tester connection
Select the vehicle type if required.
Select Emergency call system (ERA GLONASS) in the overview. Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
Maintenance/repairs must now be selected.
Control unit start-up must now be selected. Press F12 to continue and then press F8 to start.
Follow the instructions on the Tester.
A message appears reporting that the start-up procedure was completed successfully.
Information

If the Tester and VCI are not disconnected from the vehicle, the activation process cannot be performed.
Exit the diagnostic application. Disconnect the Tester from the vehicle.
Leave the ignition switched on. LED on SOS button (centre console) changes from flashing green to permanent green. (This can take up to 2 minutes)
Control unit is activated. Emergency calls (SOS button) and test calls (additional button) can be made.
Park the vehicle in a place where mobile phone reception is guaranteed.
Open the cover on the SOS button.
Press the additional button for approx. 5 seconds using a suitable tool until you hear a "beep".

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

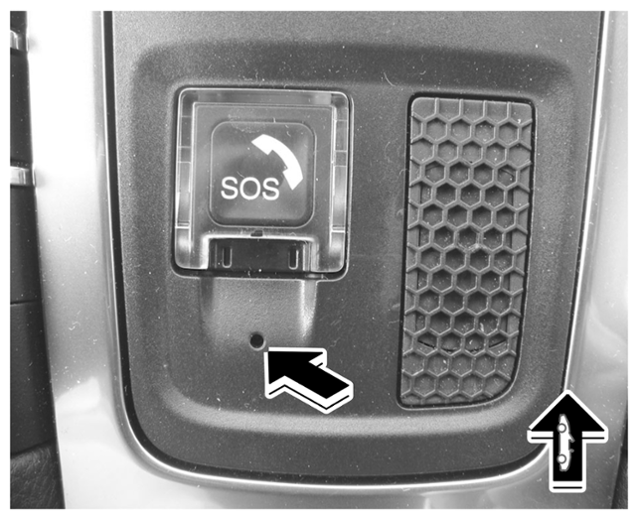

Additional button for emergency call system

Make the emergency call system test call in older to check SIM card activation as follows.

Step	Duration	Red LED	Green LED	Description
System announcement: "System Test"		Off	Flashing
Self-test	30 seconds	Off	Flashing
System announcement: "Press SOS button"		Off	Flashing
Press SOS button	Press for approx. 1 second within 20 seconds	Off	Flashing	Stops flashing after pressing the SOS button
System announcement: "Beep"		Off	Flashing	Flashes only if SOS button was pressed before
System announcement: "Press additional button"		Off	Flashing
Press additional button	Press for approx. 1 second within 20 seconds	Off	Flashing	Stops flashing after pressing the additional button
System announcement: "Beep"		Off	Flashing	Flashes only if additional button was pressed before
System announcement: "Recording"		Off	Flashing
Test recording	10 seconds	Off	Flashing	Recording your voice (e.g. Testing, Testing, 1, 2, 3)
Playback	10 seconds	Off	Flashing	Playback of test recording
System announcement: "Press SOS button if test recording is played back correctly"		Off	Flashing
Press SOS button	Press for approx. 1 second within 20 seconds	Off	Flashing	Only press the SOS button if the recording was played back correctly
System announcement: "Beep"		Off	Flashing	Flashes only if SOS button was pressed before
Dialling		On	Flashing
Sending		Flashing	Flashing
System OK		Off	On	Only if the system does not detect any faults
System announcement: "Test successful"		Off	On	System diagnostics and test call successful. SIM card is activated

LED on SOS button (centre console) lights up green and system announcement "Test successful". ERA GLONASS emergency call system is activated.
Information

The following scenarios are possible after completing the commissioning/activation process for an emergency call system that is not fully functional:
- LED on SOS button flashes or lights up red: System fault; read out fault memory
- LED on SOS button flashes or lights up red and system announcement "Test failed": System fault or network connection fault
- LED on SOS button lights up green and system announcement "Test failed": Network connection fault; contact importer
