Removing Reversing Camera

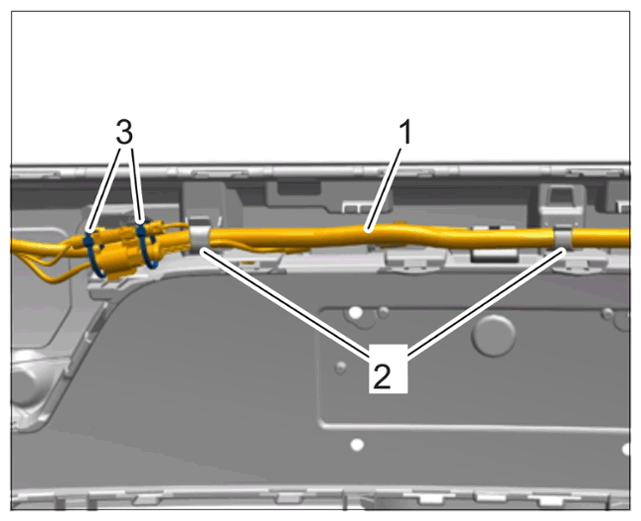

  1. Remove wire harness -1-  from holders -2-  .
    G15162358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

  2. Cut and remove the tie-wraps -3-  .
    G15162359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

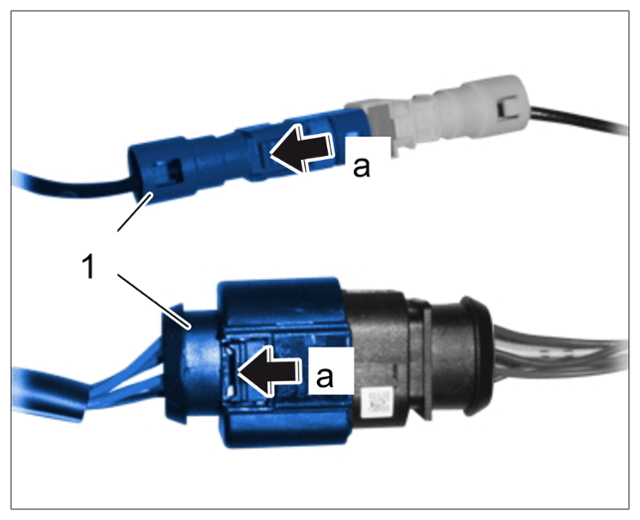

  3. Release electric plug connections -1-  (-arrows a-  ) and disconnect them.
    G15162360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

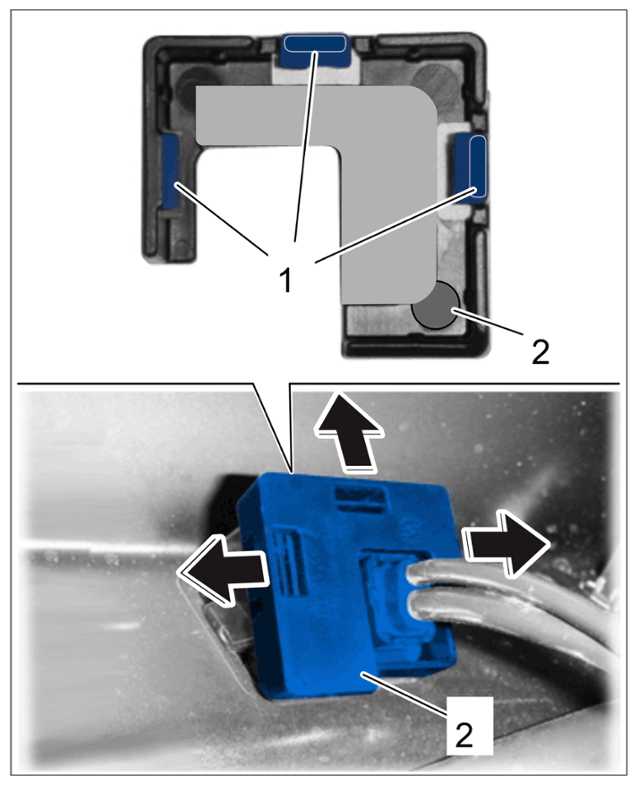

  4. Disengage locking mechanisms -1-  on the cap -2-  in direction of arrow and remove cap -2-  .
    G15162361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cap

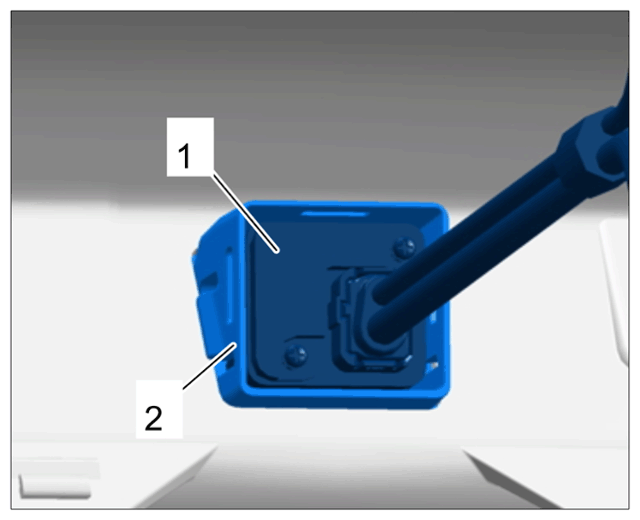

  5. Remove reversing camera -1-  from the bracket -2-  .
    G15162362Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Reversing camera

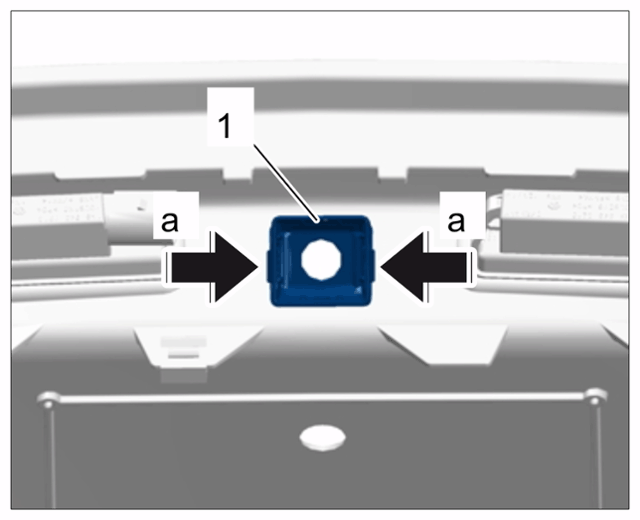

  6. Release bracket -1-  if necessary -arrows a-  and press it to the rear and out of the rear apron.
    G15162363Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bracket
