Home >> Porsche >> 2023 >> Cayenne Base, 4D Utility Coupe >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> 43 Leveling System, Air Suspension, Damper Control 3.0L -- 9YA - Cayenne (9YA) >> WM, 436655 Replacing Rear Spring Dampers >> Preliminary Work

Preliminary Work

  1. Only for vehicles with air suspension: Release air from air spring.

    > 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM

  2. Remove wheel.

    > WM, 440519 REMOVING AND FITTING WHEEL

  3. Remove stone guard for rear axle -1-  .

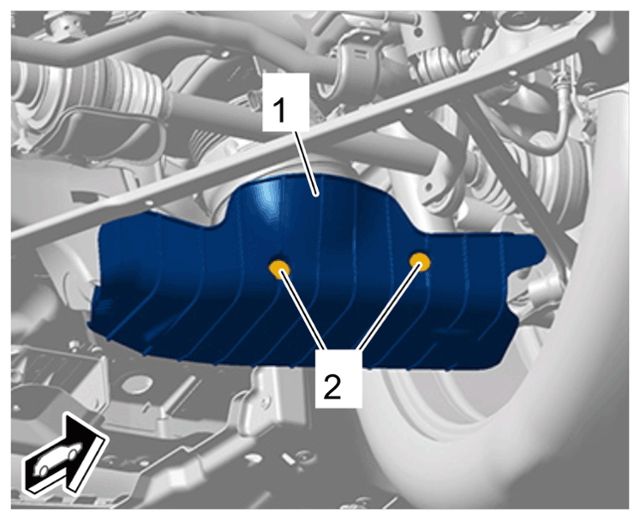

    G15279734Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stone guard for rear axle

    1. 3.1 Unclip clips -2- and remove stone guard for rear axle -1-  .
