Technical Values

Location	Description	Type	Basic value
Fastening nut on external power connection	Item 2	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. External power connection cover
Air line to front air-spring strut	Union nut, M8 (4-mm air connection)	Tightening torque	3 Nm (2 ftlb.)
Spring strut to body	Hexagon-head bolt, M8 x 34/always replace bolts following removal!	Initial tightening	20 Nm (15 ftlb.)
Spring strut to body	Hexagon-hfial bolt, M8 X 34/always replace bolts following removal!	Final tightening	+ 90°
Nuts on housing for external power connection	Item 2	Tightening torque	3 Nm (2 ftlb.)

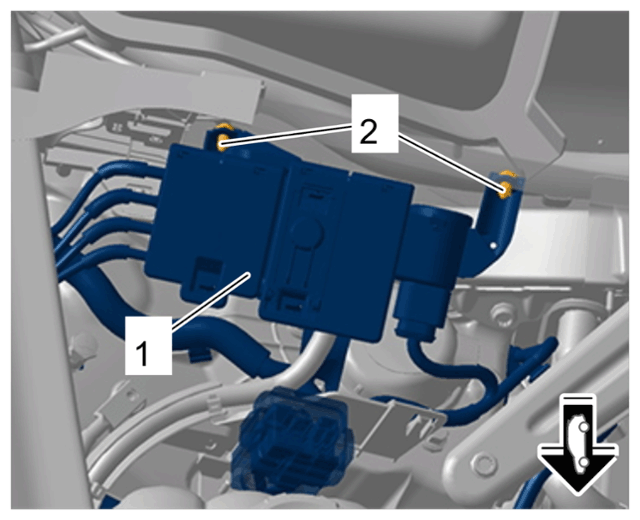

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Housing for positive terminal
