Installing Front Air-Spring Strut

Information

• Air spring modules can be replaced individually, irrespective of mileage and age.
• No service life restriction!

Information

Check the following before installing the air line:

• Check that the cutting ring -1-  and Voss threaded joint -2-  are still on the air line -3-  .
• Check that the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking air line

Only one marking -1-  °n the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking that air line is fitted correctly

1. Installation is performed in reverse order.
   1. 1.1  Air-spring strut to body -2-  > Initial tightening 20 Nm (15 ftlb.)  > Final tightening + 90°.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for air-spring strut on body

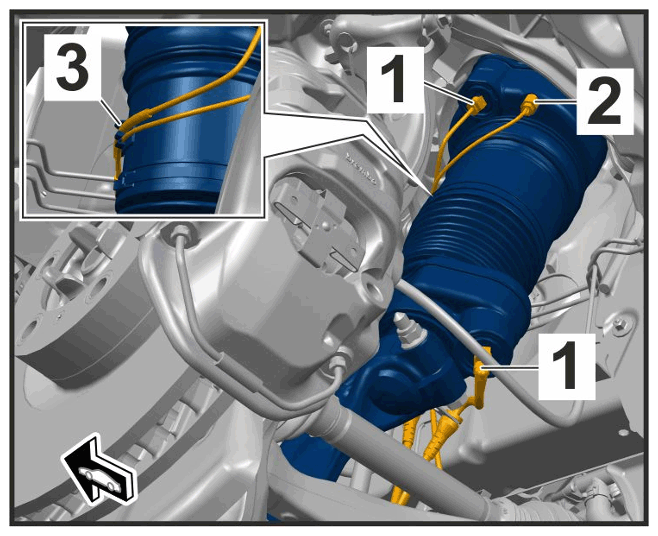

   2. 1.2  Voss connection (air line) to air-spring struts -2-  > Tightening torque 3 Nm (2 ftlb.)  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Lines on air-spring strut

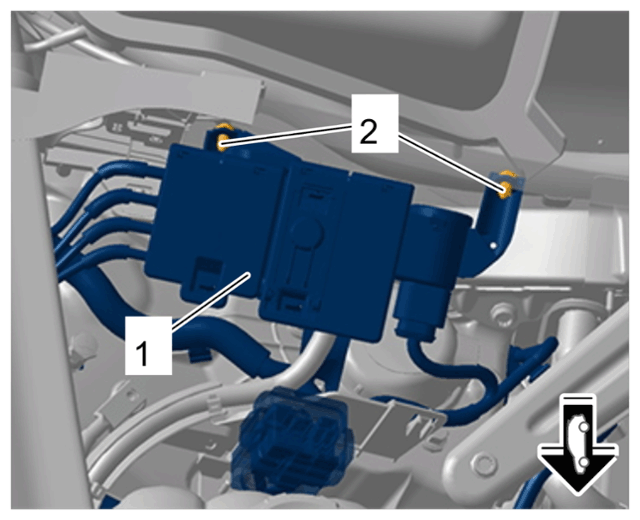

   3. 1.3  Housing for external power connection -1-  to body > Tightening torque 3 (2 ftlb.)  Nm.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Housing for external power connection

   4. 1.4  Wire harness for connecting battery starter -3-  external power connection > Tightening torque 20 Nm (14.8 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Wire harness for battery starter
