Replacing Valve Unit: Notes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

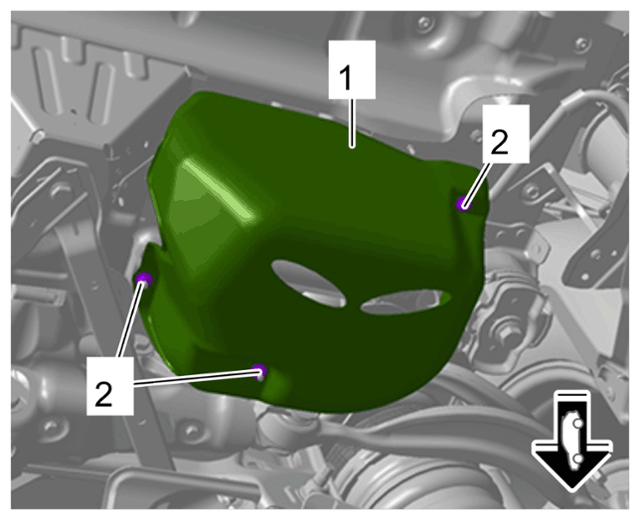

Stone guard for valve unit

1. 1.1  Unscrew nuts -2-  and remove stone guard for valve unit -1-  .

   Information

   The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

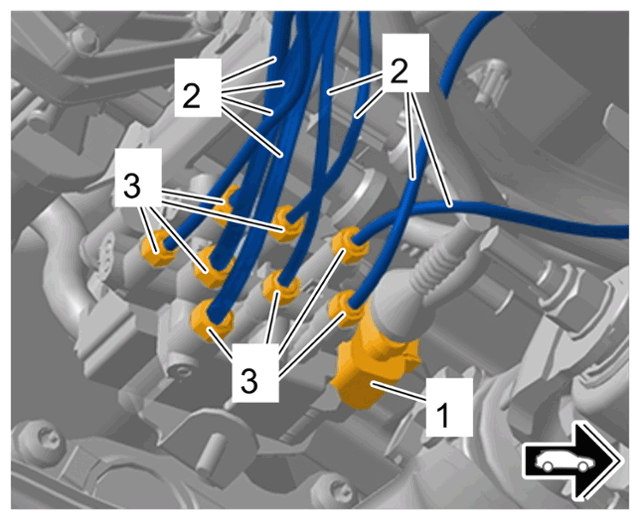

   Air line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Valve unit

1. 2.1  Release and disconnect electric plug connection -1-  .
2. 2.2  Loosen union nuts but do not unscrew fully until residual air has escaped.
3. 2.3  Remove air lines -2-  from valve unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

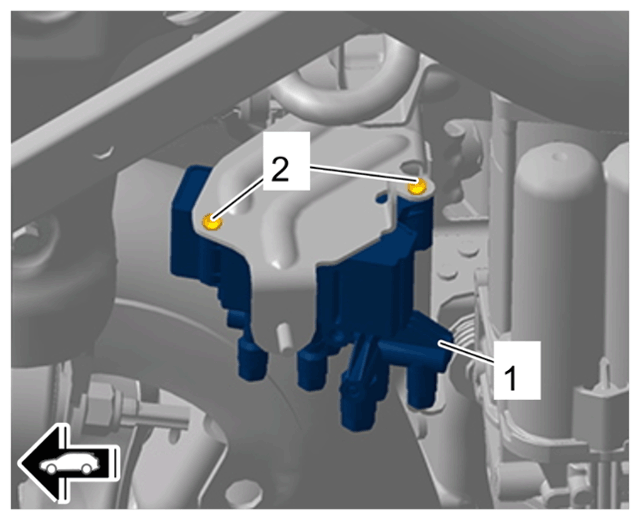

Valve unit screws

1. 3.1  Unscrew screws -2-  and remove valve unit -1-  .
