Removing PASM Control Unit

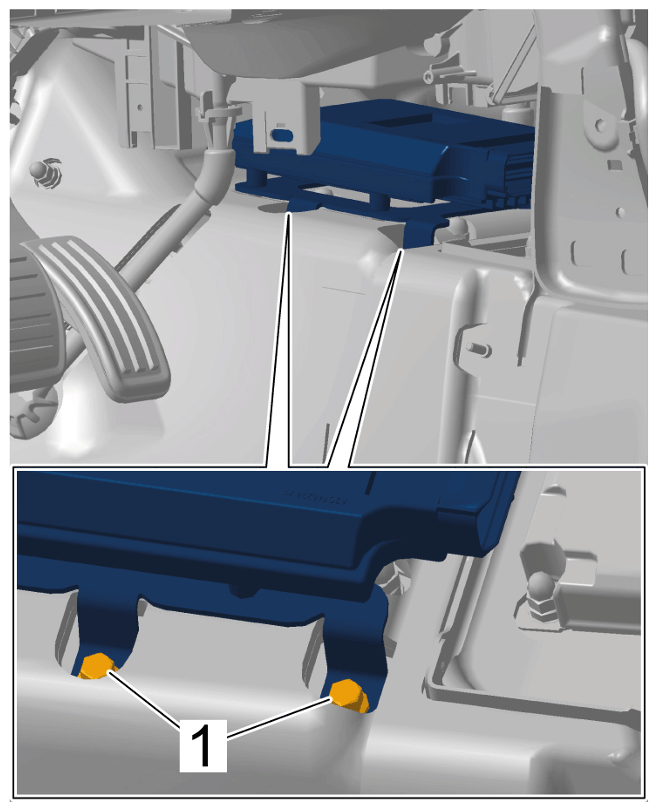

Press the carpet down at the left and unscrew fastening nuts -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

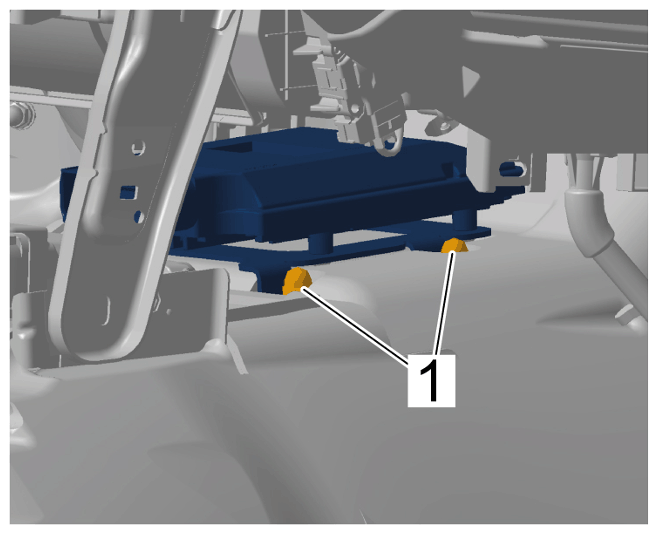

Press the carpet down at the right and unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carpet at the right

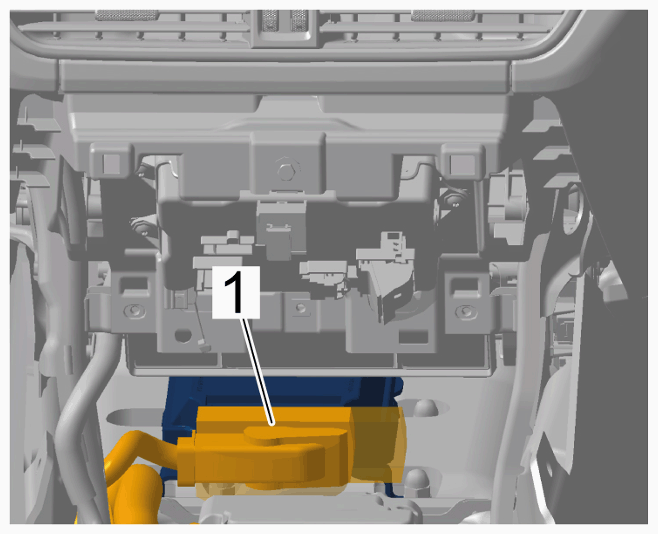

Lift PASM control unit and release and disconnect electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

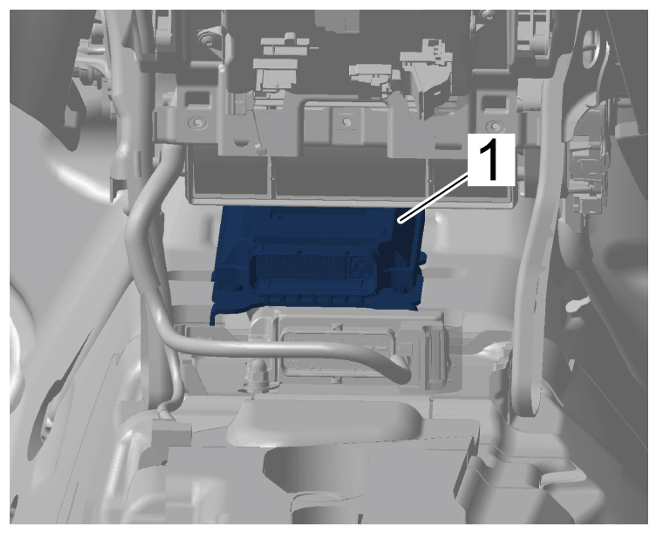

Remove PASM control unit with holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PASM control unit with holder
If replacing the PASM control unit

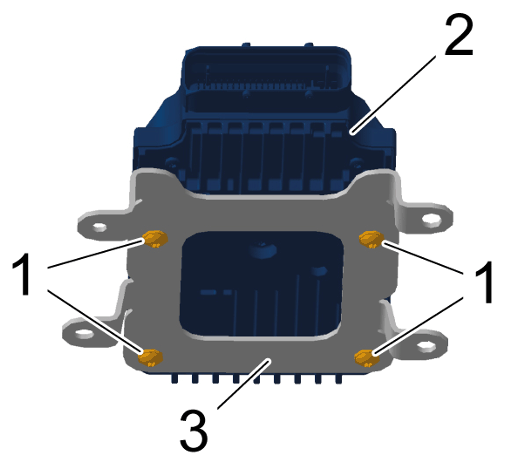

Unscrew fastening screws -1- and remove PASM control unit -2- from the holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PASM control unit
