Removing Compressor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

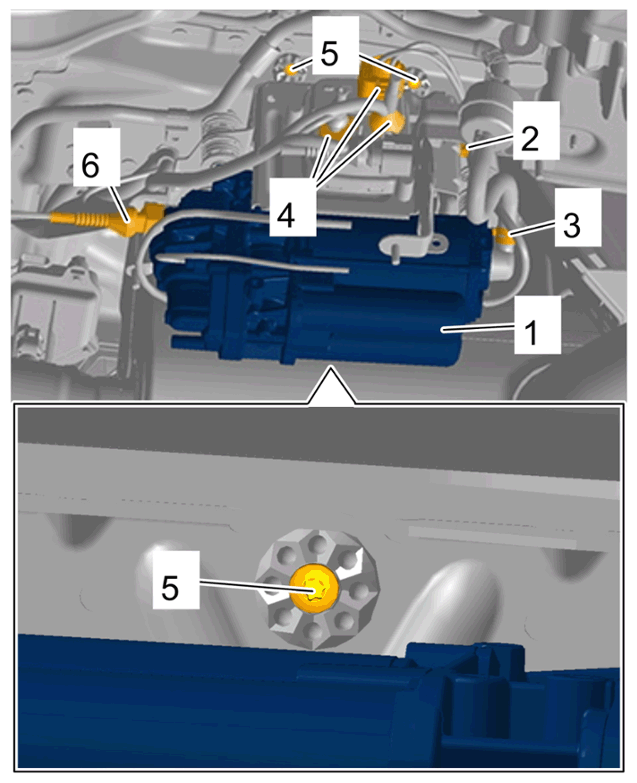

Compressor

1. 1.1  Unclip clip -2-  .
2. 1.2  Loosen spring band clamp fusing > VAS 6891 - spring band clamp pliers  and disconnect hose from compressor
3. 1.3  Release and disconnect electric plug connections -4 and 6-  .
4. 1.4  Unscrew screws -5-  and remove compressor -1-  with holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

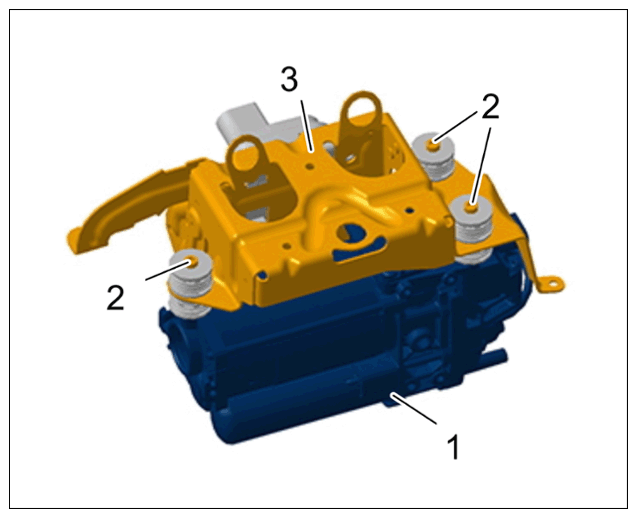

Compressor with holder

1. 2.1  Unscrew and remove screws -2-  .
2. 2.2  Remove compressor -1-  from holder -3-  .
