Removing (Rear) PDCC Control Unit

Read and follow work instruction for 48 V vehicle electrical system.
1. 1.1 Deactivate 48-volt vehicle electrical system.
  > 2X00IN WORK INSTRUCTION FOR 48 V VEHICLE ELECTRICAL SYSTEM
Release and disconnect electric plug connections from servo motor for rear axle steering.
> 488319 REMOVING AND INSTALLING SERVO MOTOR FOR REAR AXLE STEERING

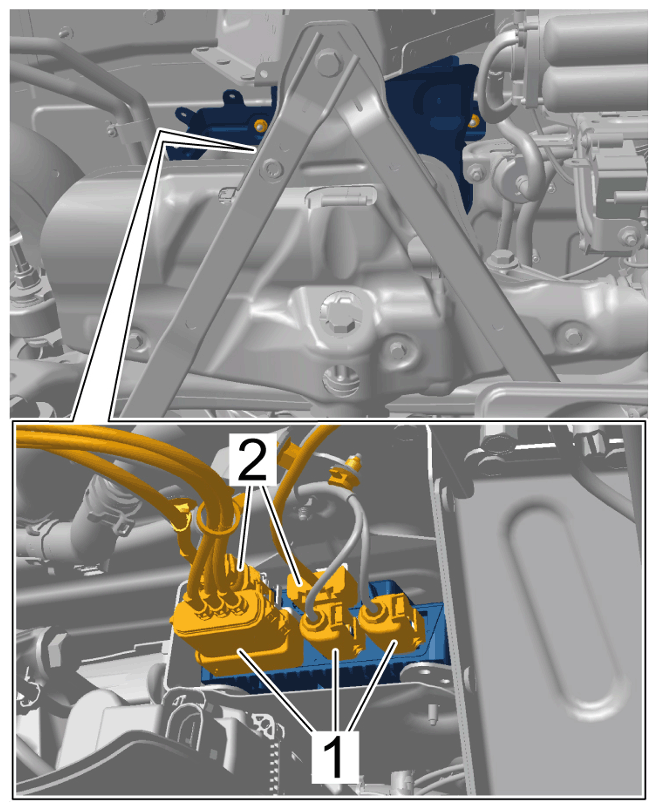

Release and unplug electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Release and unplug electric plug connections -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

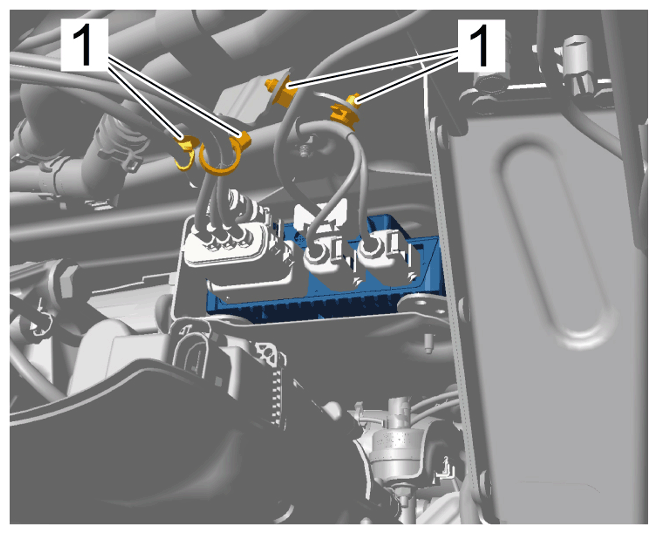

Unclip electric wire harnesses iL and set them aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harnesses
Check electric plug connections for damage and replace if necessary.
The seal must be fitted at the lowest point in the connector and must not have slipped out of position.

If the seal has slipped out of position, replace the connector.

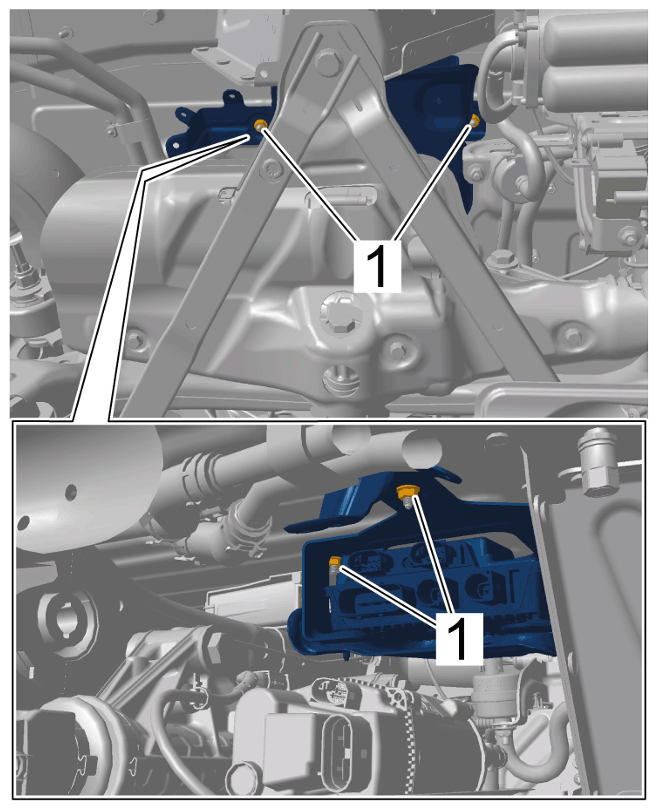

Screw off fastening nuts -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
Remove (rear) PDCC control unit with holder until fastening nuts -1- for the heat shield -2- are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

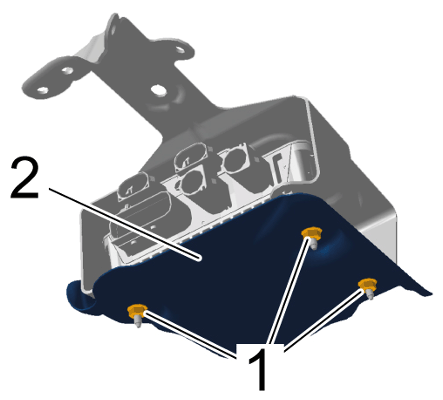

Unscrew fastening nuts -1- and remove heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

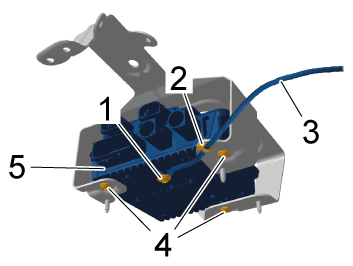

Unscrew fastening screw -1- unclip line bracket -2- and remove ground line -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line
Unscrew fastening screws -5- and remove (rear) PDCC control unit -5- from the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
