Disassembling Steering Wheel

1. Unscrew screws -1-  for cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for back cover

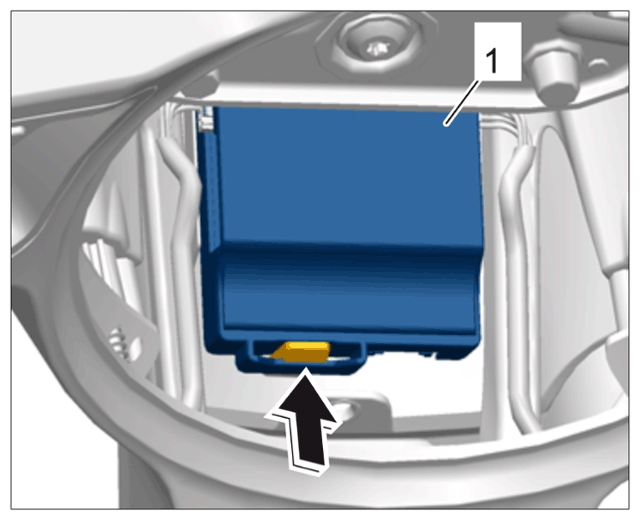

2. Release control unit -1-  at position -Arrow-  and pull it forward slightly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit mounting

3. Remove the cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for back cover

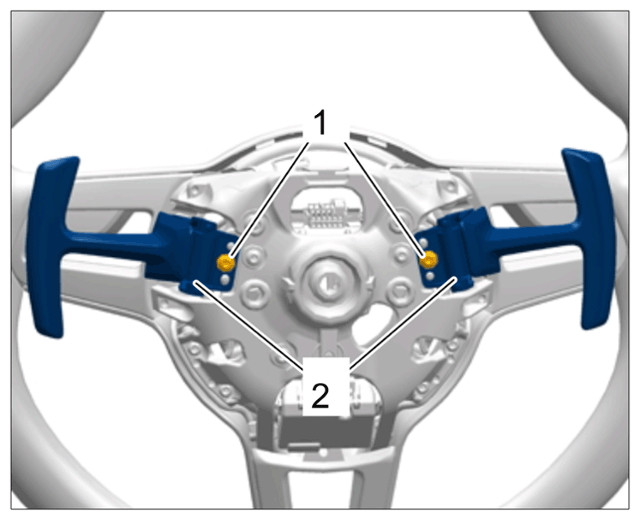

4. Unscrew screws -1-  for rocker switches -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rocker switch mounting

5. Release and disconnect electric plug connection -1-  for rocker switches.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for rocker switches

6. Lift rocker switches -2-  up and off.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rocker switch mounting

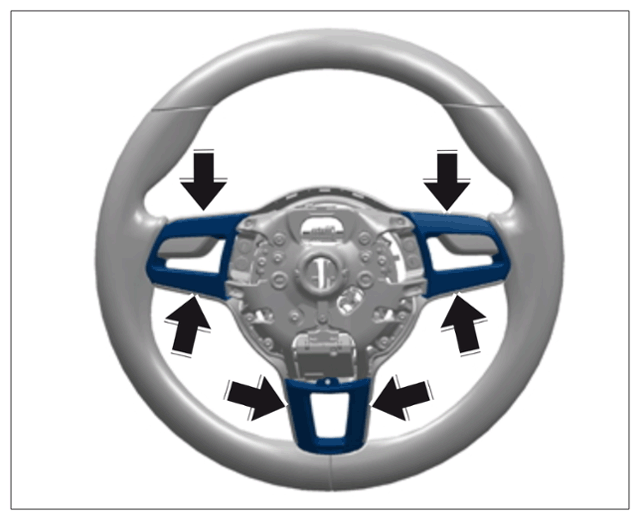

7. Unclip back covers using a suitable tool -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Back covers

8. Only for vehicles with heated steering wheel:

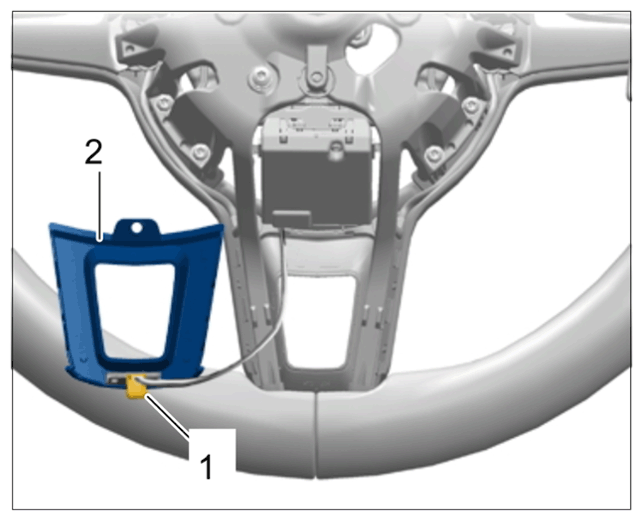

   Disconnect electric plug connection -1-  from rear trim -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for steering wheel heating

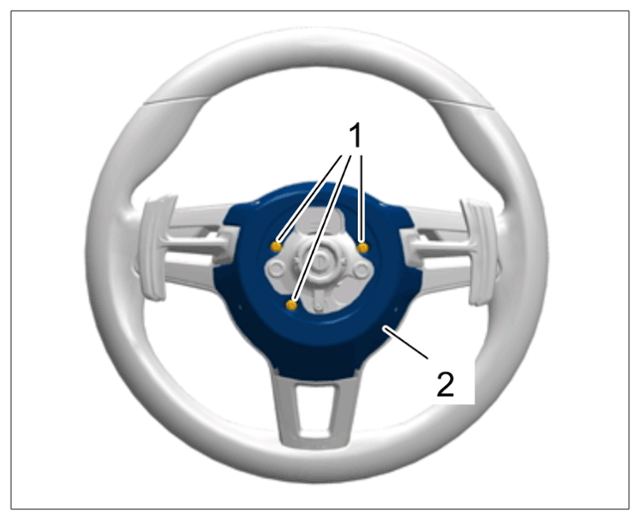

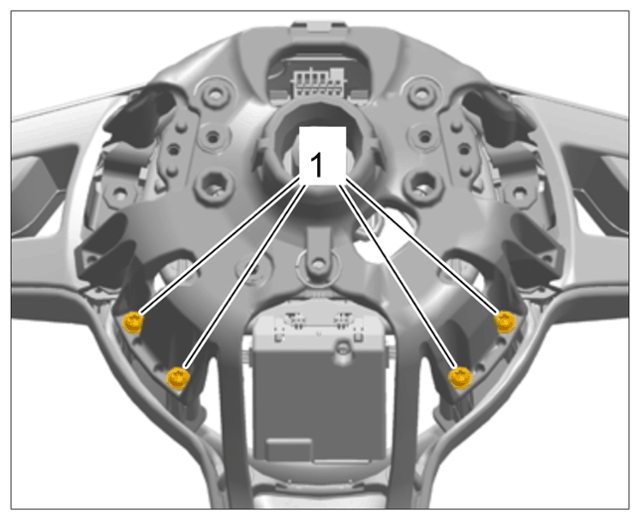

9. Unscrew screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for main cover

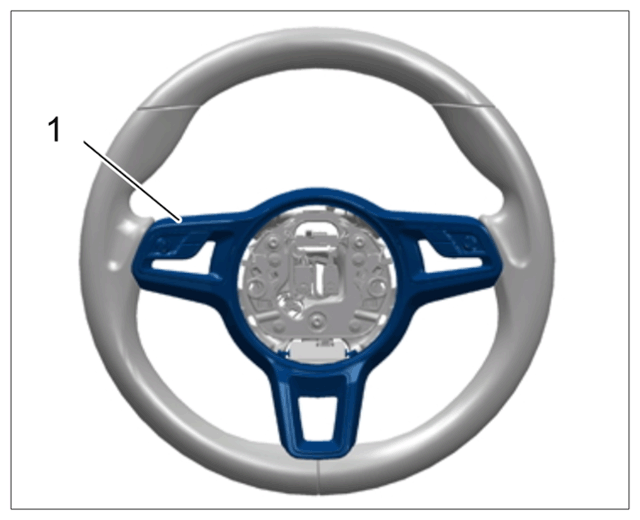

10. Unclip main cover -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main cover

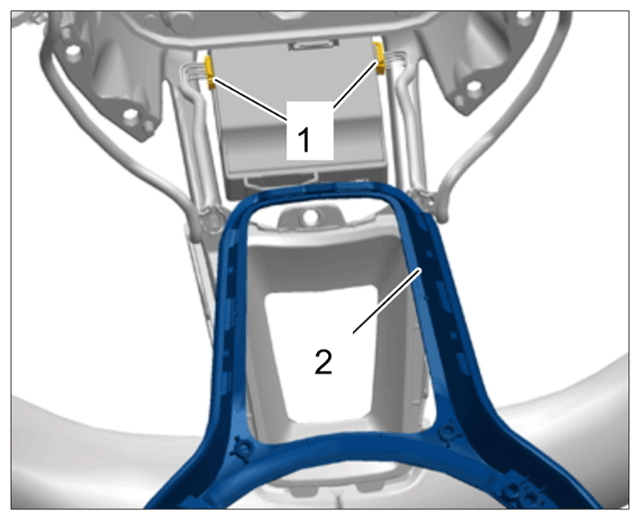

11. Release and disconnect electric plug connections -1-  and remove main cover -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for main cover

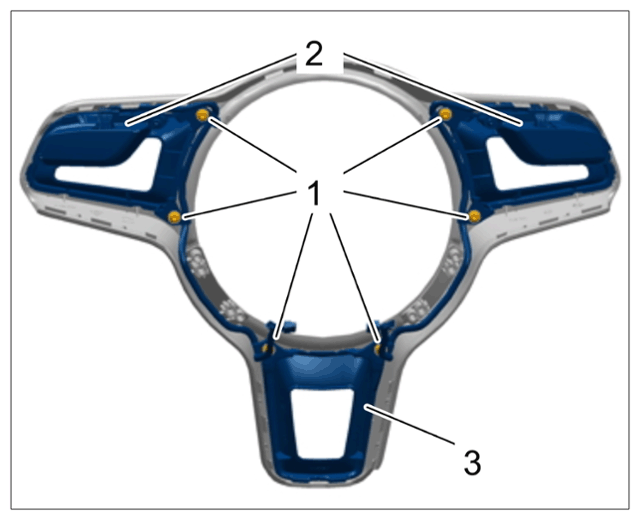

12. Unscrew screws -1-  and remove multi-functional switch -2-  and front cover -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Multi-functional switch and cover mounting

    Only for vehicles with Mode switch:

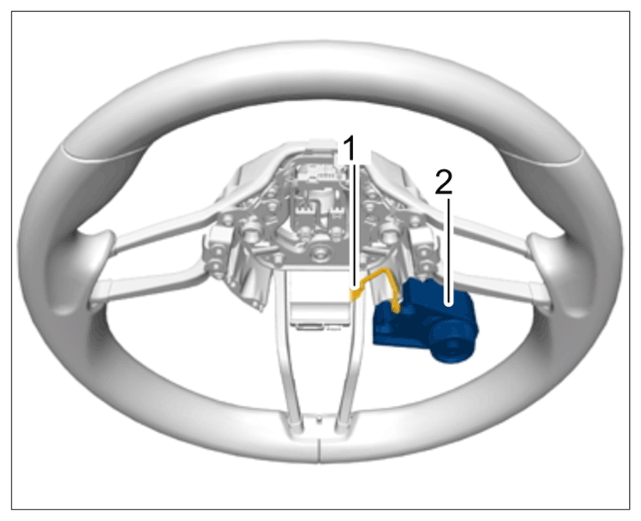

13. Release and disconnect electric plug connection -1-  and remove Mode switch -2-  from the steering wheel.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mode switch

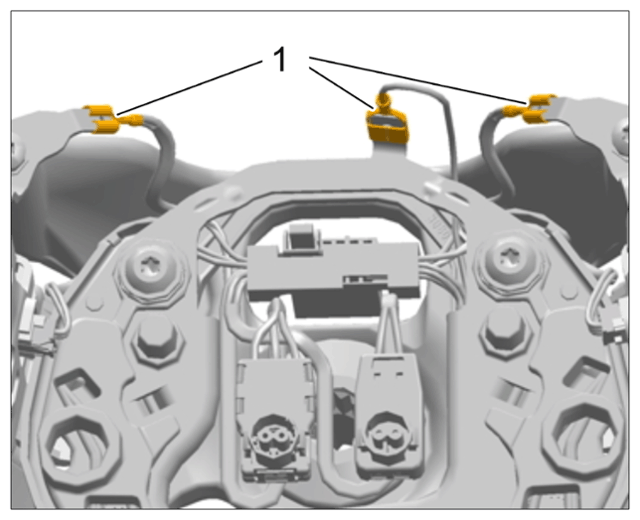

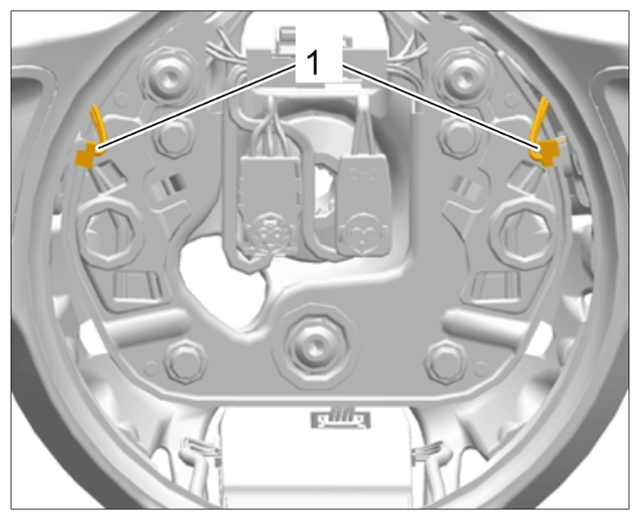

14. Disconnect ground contacts -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground contacts

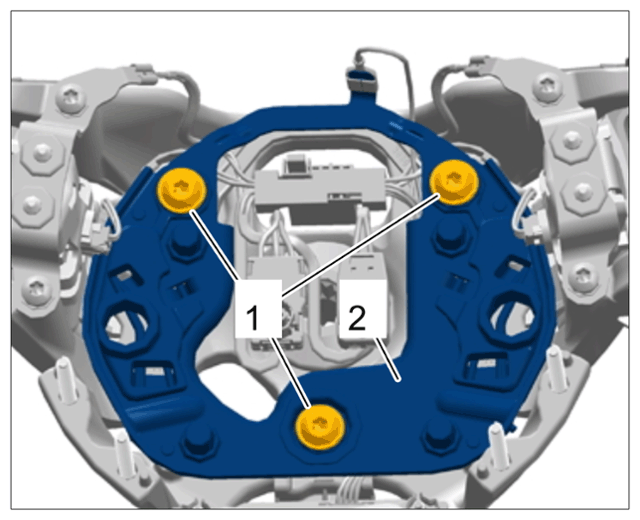

15. Unscrew screws -1-  and remove contact bridge -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for contact bridge

    Information

    The number of electric plug connections will vary depending on equipment.

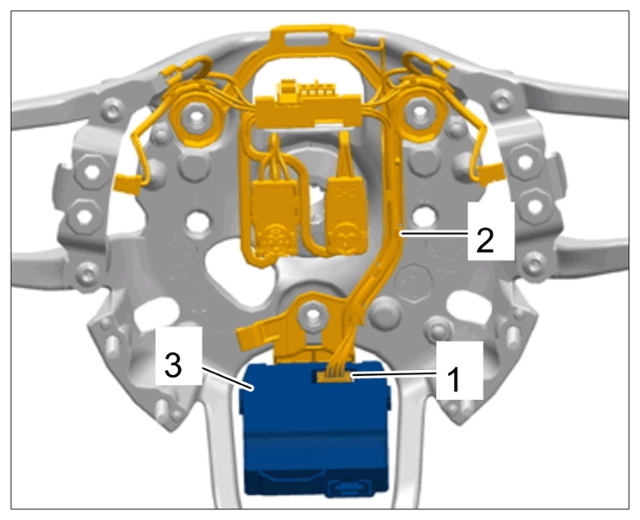

16. Release and disconnect electric plug connection -1-  from control unit -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for control unit

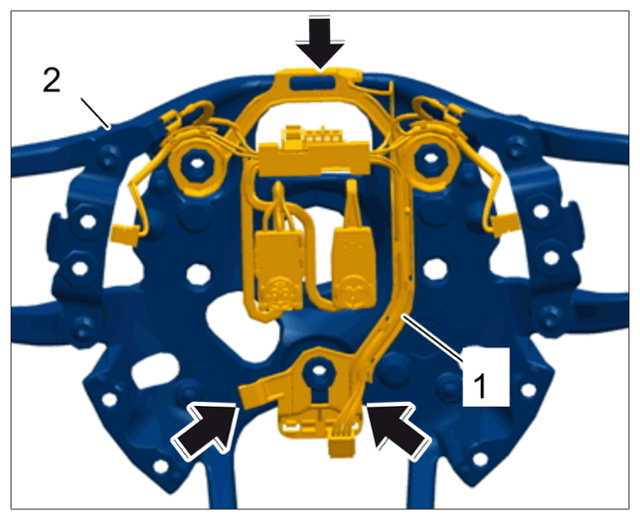

17. Release wire harness -1-  from steering wheel skeleton -2-  (-arrows-  ) and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for wire harness
