Installing Additional Air Conditioner (Booster)

Information

• Damaged or incorrectly joined components can cause noises when the air conditioning is switched on.

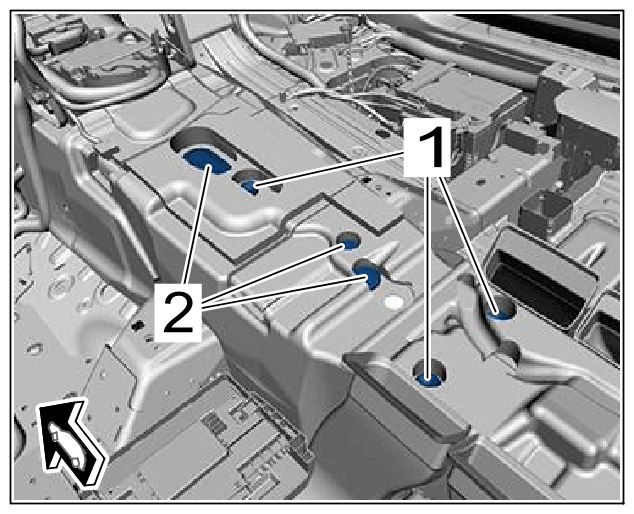

1. Check fastening elements -1-  and covers -2-  for damage and check that they are fitted correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber holder

2. Install additional air conditioner -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Additional air conditioner

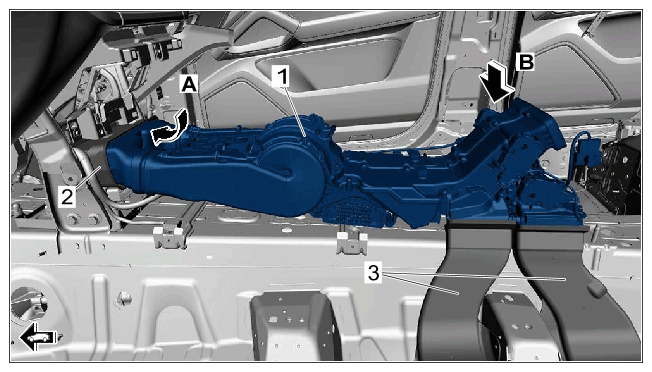

   1. 2.1  Fit additional air conditioner -1-  into the front air duct -2-  (-arrow A-  ).
   2. 2.2  Fit additional air conditioner -1-  at the rear into the rear air duct -3-  and engage it in the fastening elements on the tunnel -arrow B-  .
3. Secure electric line for additional air conditioner at the right.

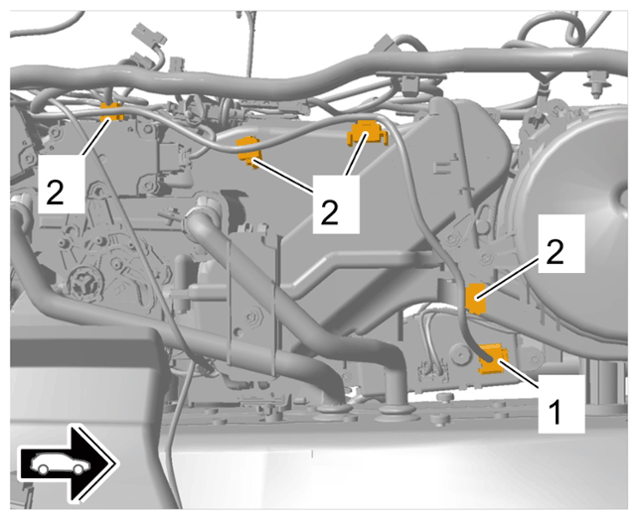

   1. 3.1  Connect and lock electric plug connection -1-  .
   2. 3.2  Clip in clips -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for additional air conditioner at the right

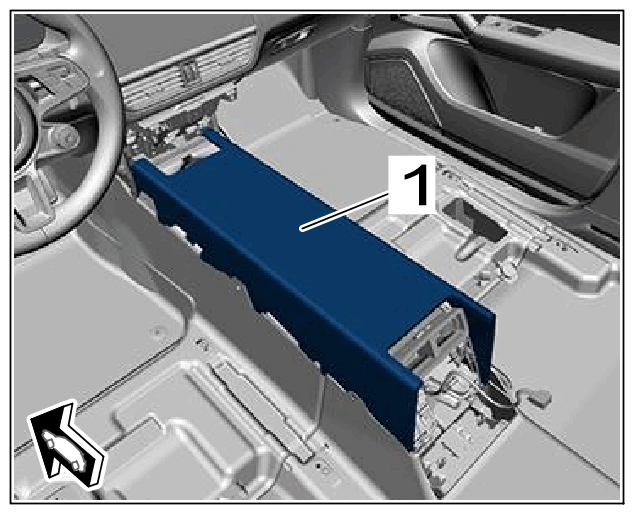

4. Install insulating mat -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insulating mat
