Trim Panel For Dashboard (Driver'S Side)

Location Description Type Basic value Tolerance
Screw securing dashboard trim panel (driver's side) to instrument panel Item 1 Tightening torque 3 Nm (2 ftlb.)

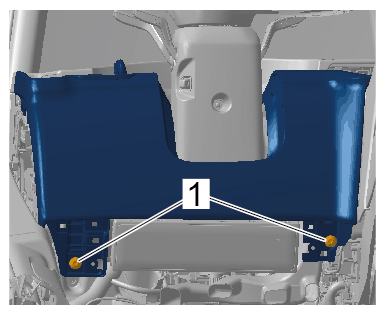

G15240740Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

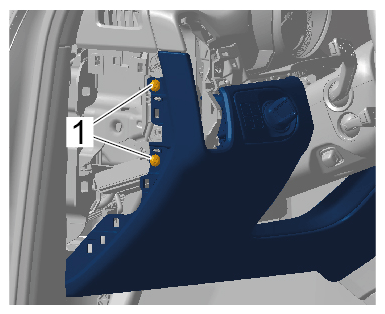

G15240741Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screws
