Rear Seat

Location	Description	Type	Basic value
Screws for rear seat frame	Item 1	Tightening torque	50 Nm (37 ftlb.)

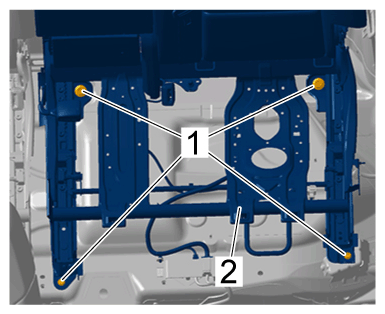

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear seat frame
Screw securing armrest holder to load-through provision	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

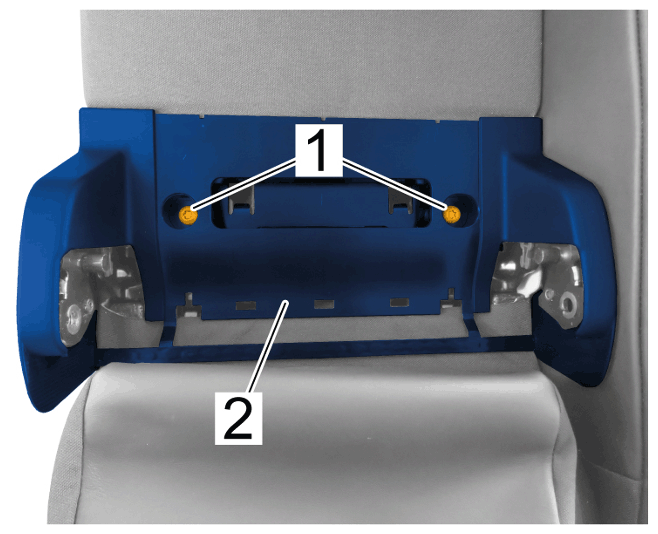

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Armrest holder
Screw securing armrest with cover to load-through provision	Item 1	Tightening torque	7 Nm (5 ftlb.)

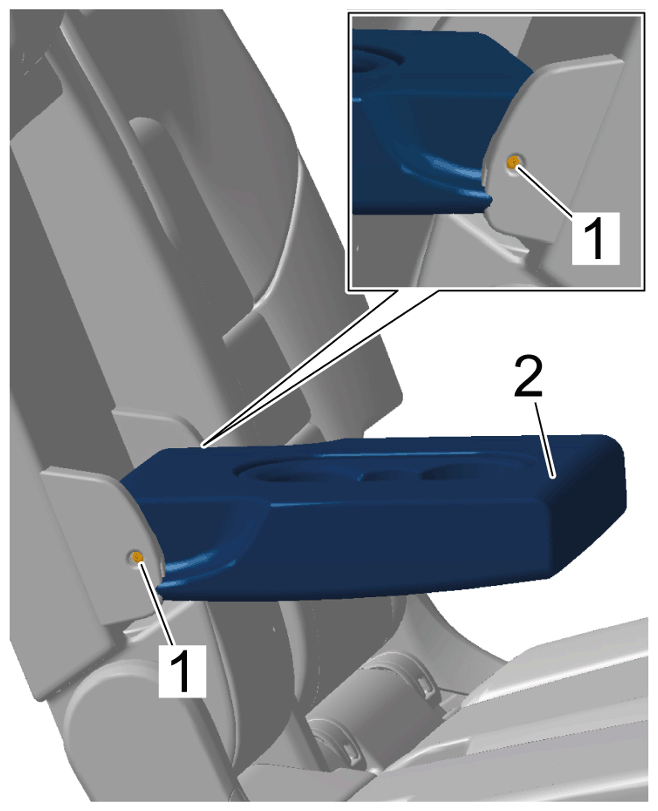

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest
Screw securing load-through provision to holder	Item 2	Tightening torque	25 Nm (19 ftlb.)

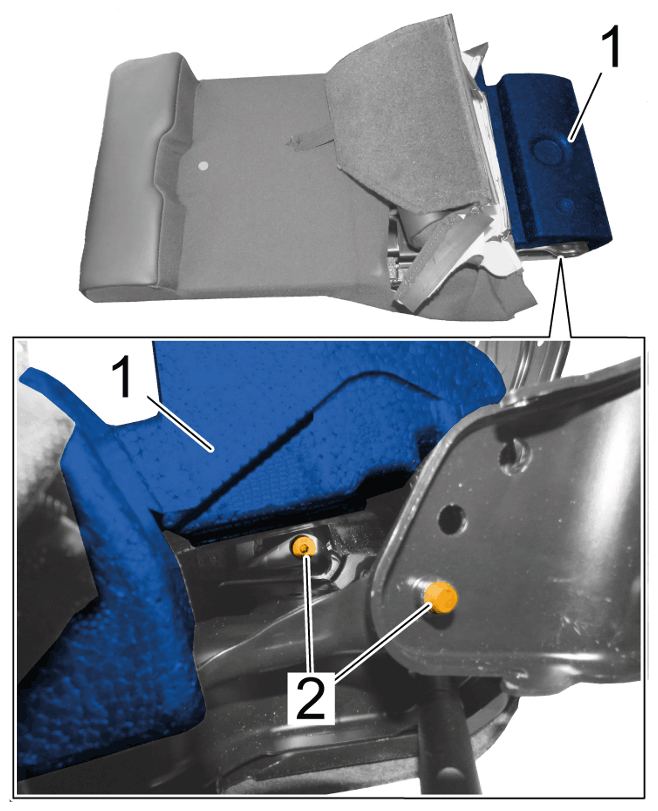

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Load-through provision
Screw securing release lever to seat frame	Item 1	Tightening torque	25 Nm (19 ftlb.)

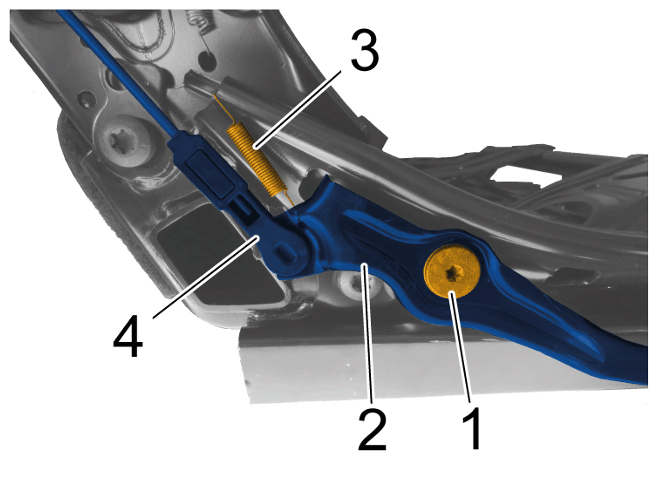

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Release lever
Screw securing backrest to seat frame	Item 1	Tightening torque	58 Nm (43 ftlb.)

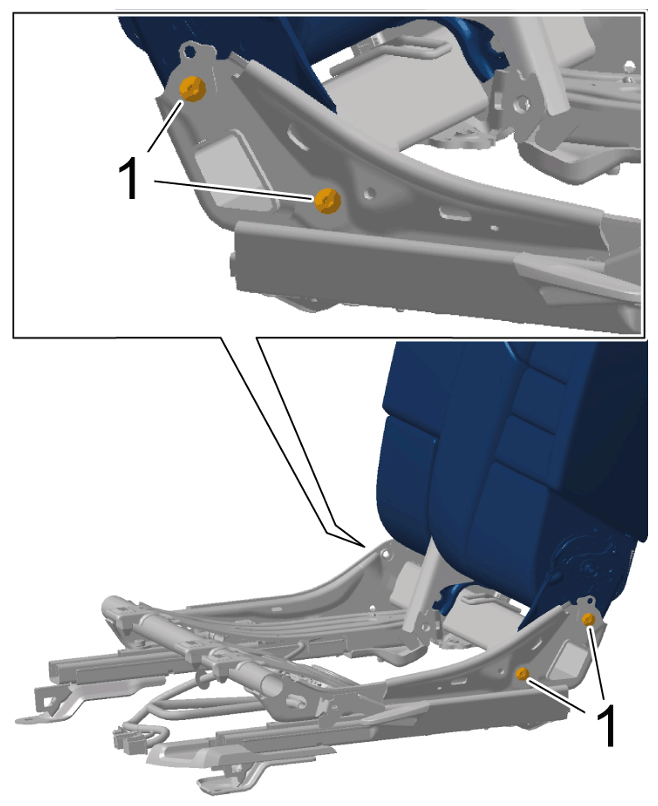

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for backrest
