Rear Door Panel

Location	Description	Type	Basic value

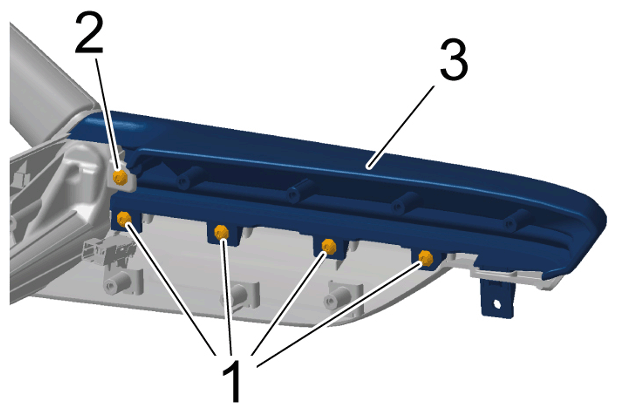

Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest

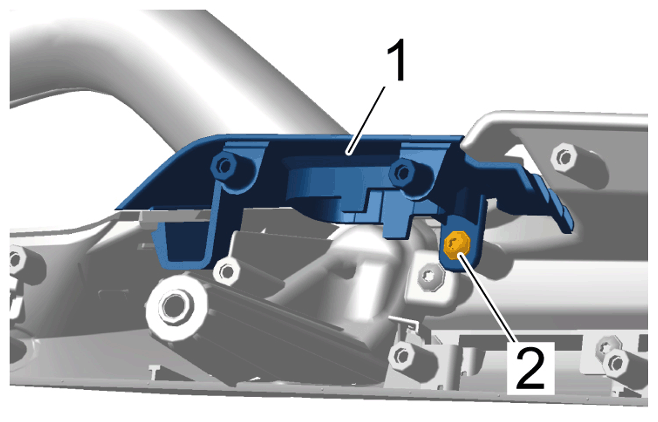

Screw for armrest trim	Item 2	Tightening torque	2.3 Nm (1.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest

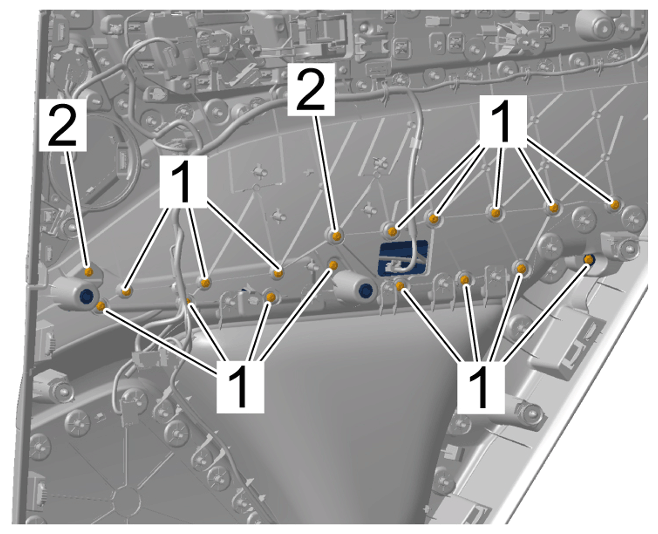

Screws for armrest	Item 1	Tightening torque	2.3 Nm (1.7 ftlb.)
Screws for armrest	Item 2	Tightening torque	2.8 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

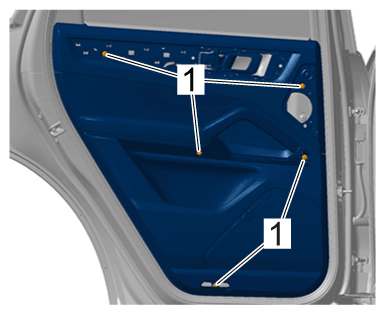

Screws for door panel	Item 1	Tightening torque	4.5 Nm (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
