Technical Values: Overview

Location Description Type Basic value Tolerance 1 Tolerance 2

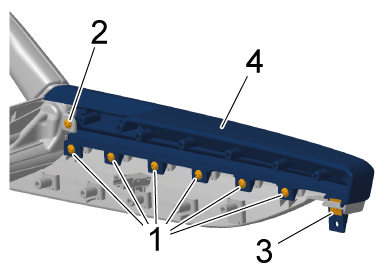

Screws for armrest Item 1 Tightening torque 2.3 Nm (1.6 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)
G15240678Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest

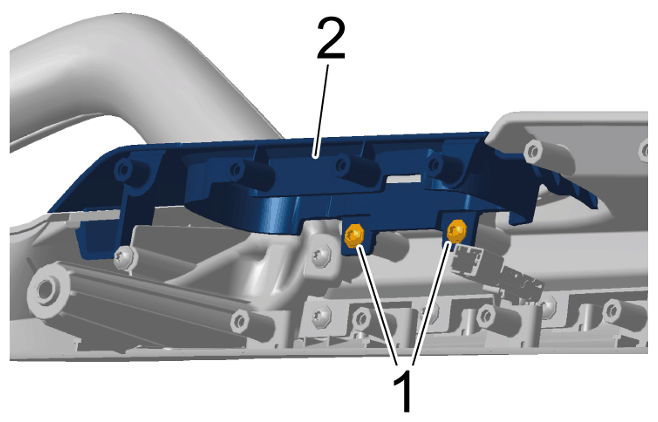

Screws for armrest trim Item 2 Tightening torque 2.3 Nm (1.6 ftlb.)
G15240679Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest trim
Screws for armrest Item 1 Tightening torque 2.3 Nm (1.6 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)
G15240680Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

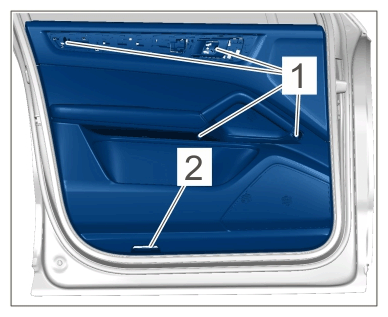

Screws for door panel Item 1 Tightening torque 4.5 Nm (3.25 ftlb.)
G15240681Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on door panel
Screw on door panel Item 2 Tightening torque 2.5 Nm (1.75 ftlb.)
G15240682Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on door panel

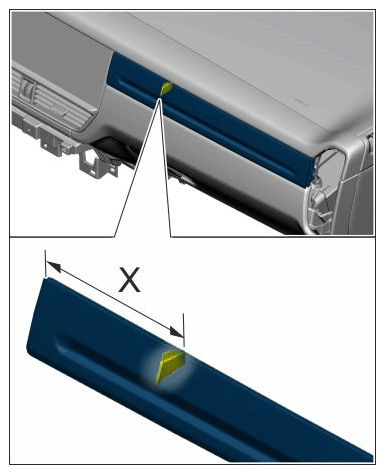

Position of safety hooks   Distance 115 mm
G15240683Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position of safety hooks

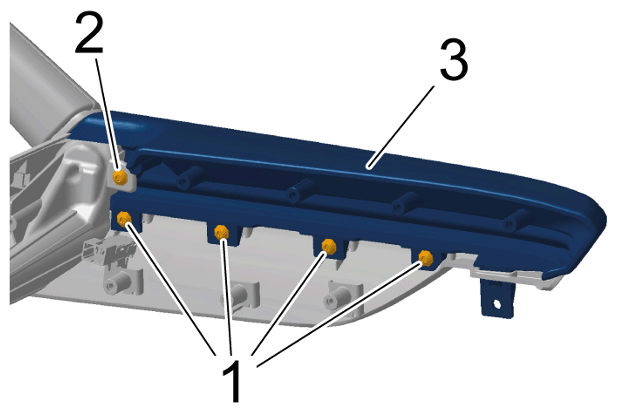

Screws for armrest Item 1 Tightening torque 2.3 Nm (1.7 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)
G15240684Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest

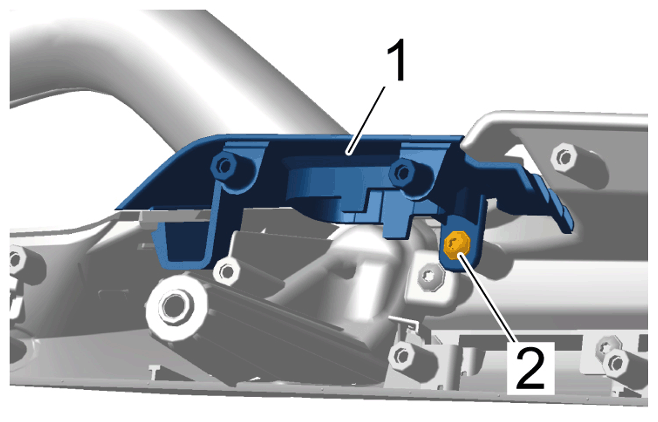

Screw for armrest trim Item 2 Tightening torque 2.3 Nm (1.7 ftlb.)
G15240685Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest
Screws for armrest Item 1 Tightening torque 2.3 Nm (1.7 ftlb.)
Screws for armrest Item 2 Tightening torque 2.8 Nm (2.1 ftlb.)

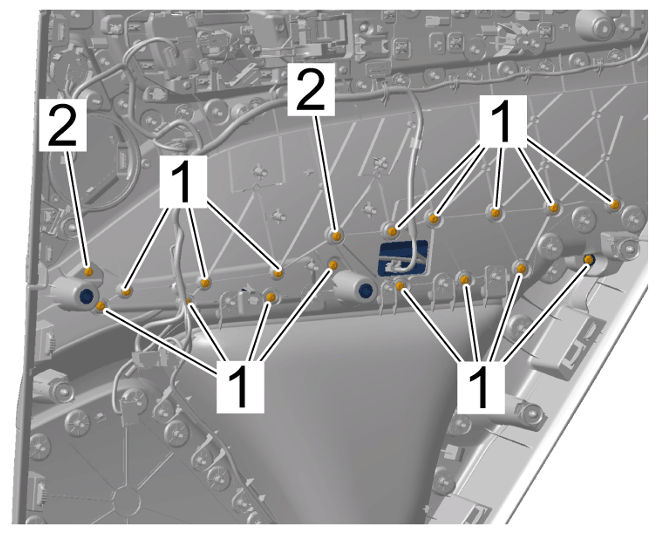

G15240686Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

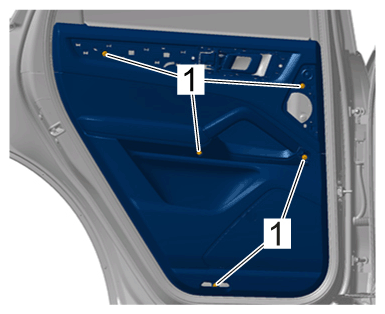

Screws for door panel Item 1 Tightening torque 4.5 Nm (3.3 ftlb.)
G15240687Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

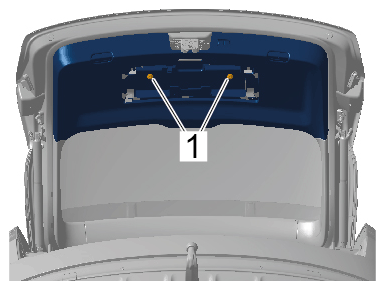

Screws for trim panel for rear lid, bottom Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15240688Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Screws on trim panel for rear lid, bottom Item 1 Tightening torque 2 Nm (1.5 ftlb.)
Screws on headliner   Tightening torque 9 Nm (6.5 ftlb.)

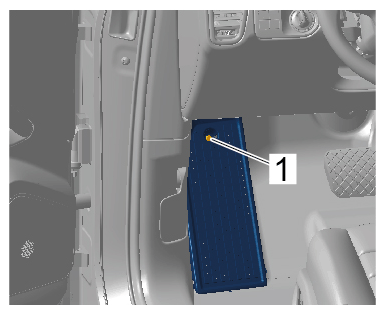

Screw for footrest Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240689Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

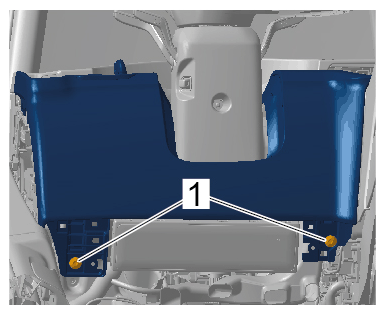

Screw securing dashboard trim panel (driver's side) to instrument panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240690Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

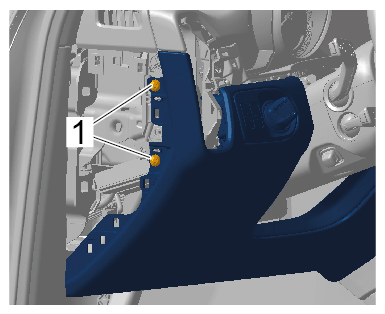

G15240691Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screws

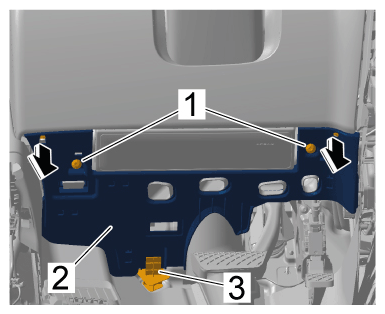

Screw securing dashboard cover (driver's side) to instrument panel Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240692Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard cover (on driver's side)

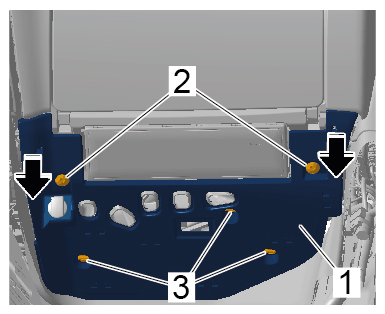

Screw securing dashboard cover (passenger's side) to instrument panel Item 2 Tightening torque 3 Nm (2 ftlb.)
G15240693Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard cover (passenger's side)

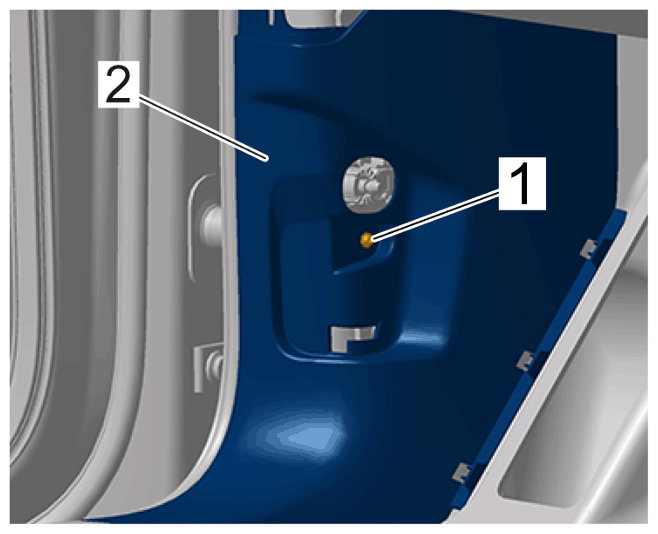

Screw for A-pillar trim panel (lower part) Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15240694Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A-pillar trim panel (lower part)

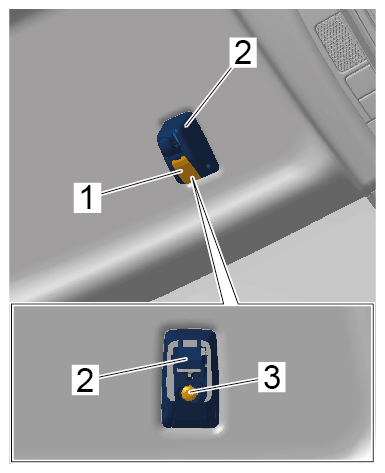

Screw for bracket Item 3 Tightening torque 0 Nm (0 ftlb.)
G15240695Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on sun visor bracket

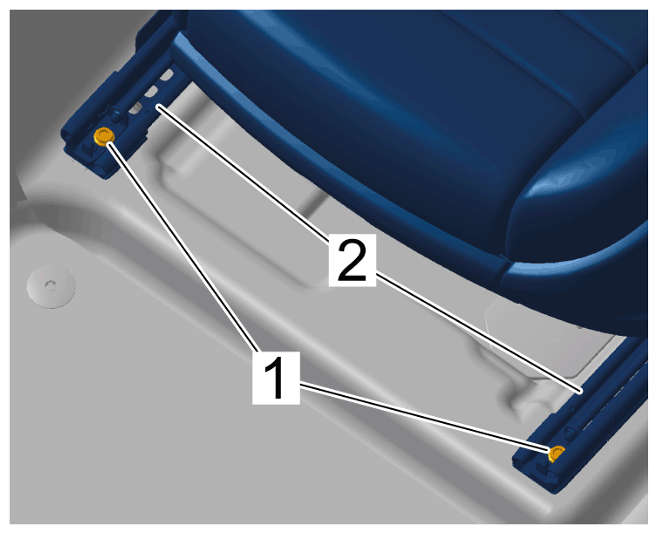

Front screws Item 1 Tightening torque 50 Nm (37 ftlb.)
G15240696Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front screws

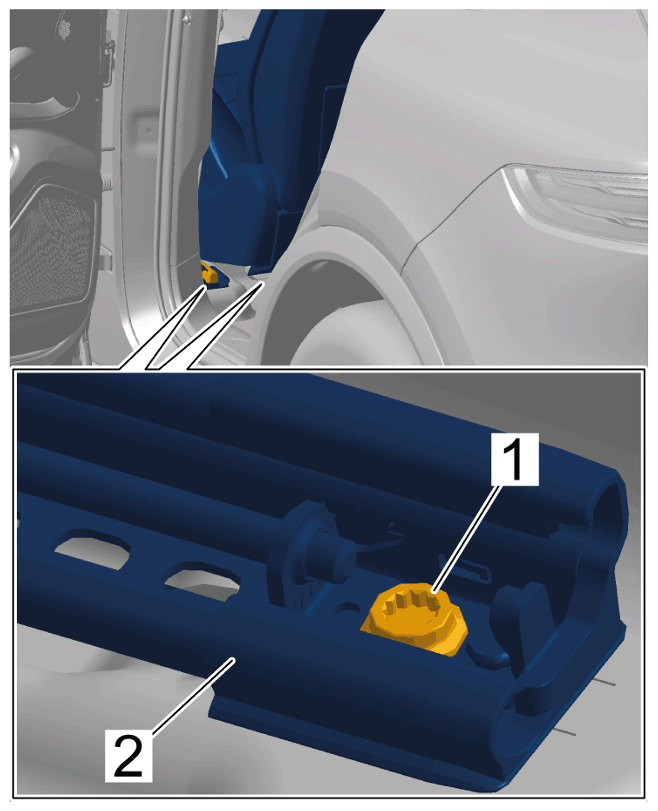

Rear screws Item 1 Tightening torque 50 Nm (37 ftlb.)
G15240697Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screws

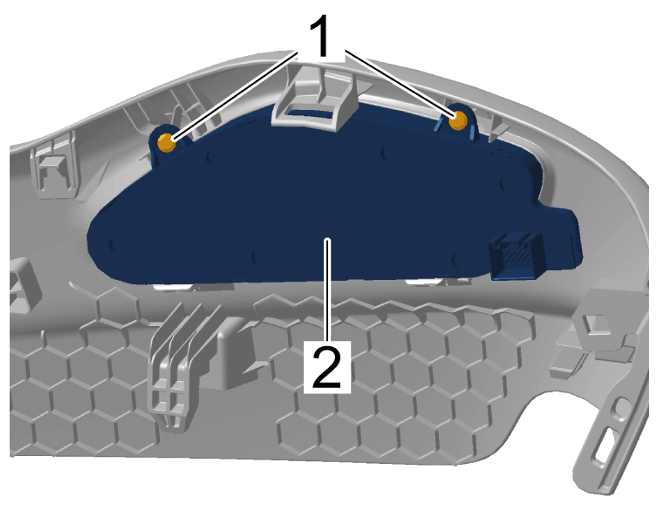

Screw on switch for seat adjustment, front Item 1 Tightening torque 2.5 Nm (1.75 ftlb.)
G15240698Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front seat adjustment switch
Tightening torque for screw securing fire extinguisher holder to tubular frame holder Item 3 Tightening torque 8 Nm (6 ftlb.)
G15240699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fire extinguisher holder

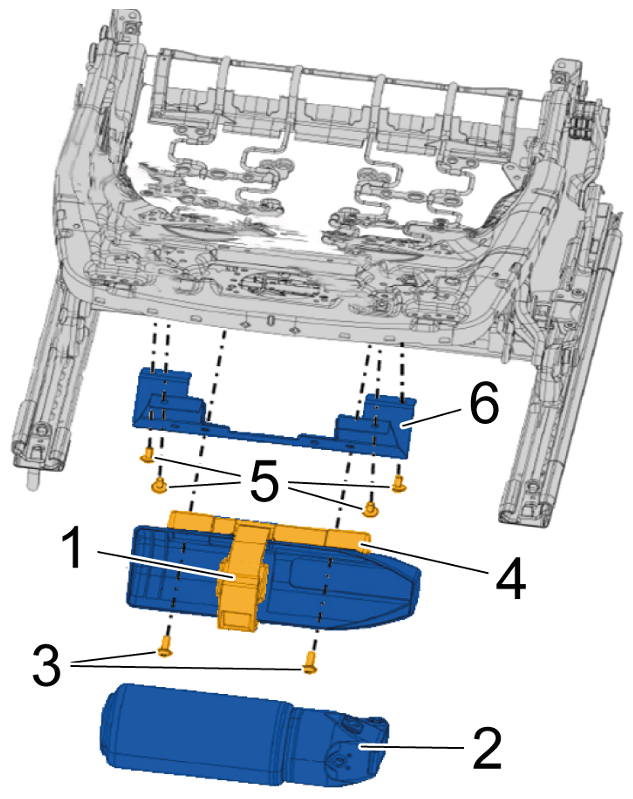

Screw securing wire frame holder to seat frame Item 5 Tightening torque 7.5 Nm (5.5 ftlb.)
G15240700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fire extinguisher holder

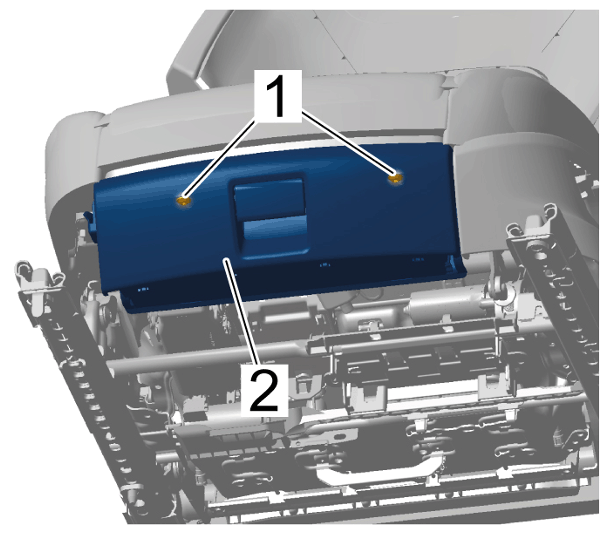

Screw securing fold-out compartment to front seat frame Item 1 Tightening torque 8 Nm (6 ftlb.)
G15240701Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Storage compartment

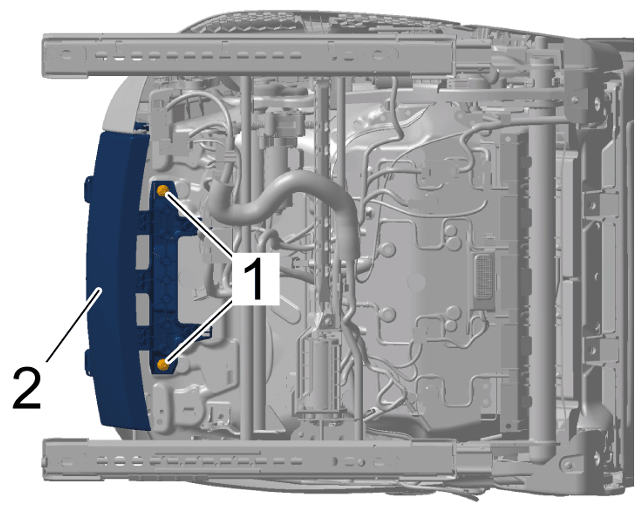

Screw securing front seat to seat frame Item 1 Tightening torque 8 Nm (6 ftlb.)
G15240702Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front cover

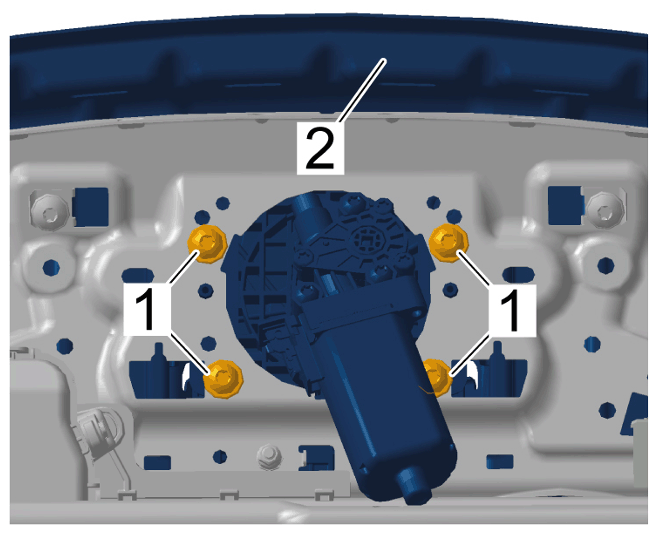

Screw securing seat-surface extension to seat frame Item 1 Tightening torque 8 Nm (6 ftlb.)
G15240703Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat surface extension

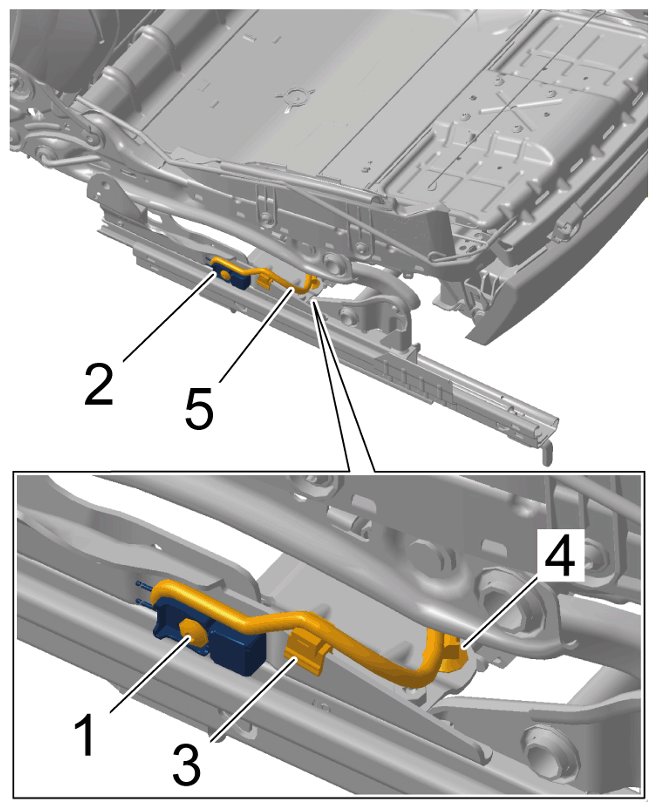

Screw securing sensor to front seat frame Item 1 Tightening torque 1.1 Nm (0.8 ftlb.)
G15240704Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for sensor

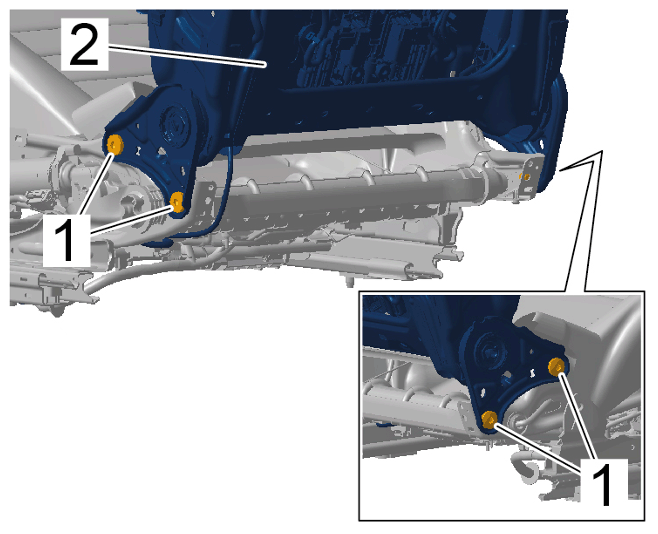

Screw securing backrest frame to seat frame Item 1 Tightening torque 33 Nm (25 ftlb.)
G15240705Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest frame

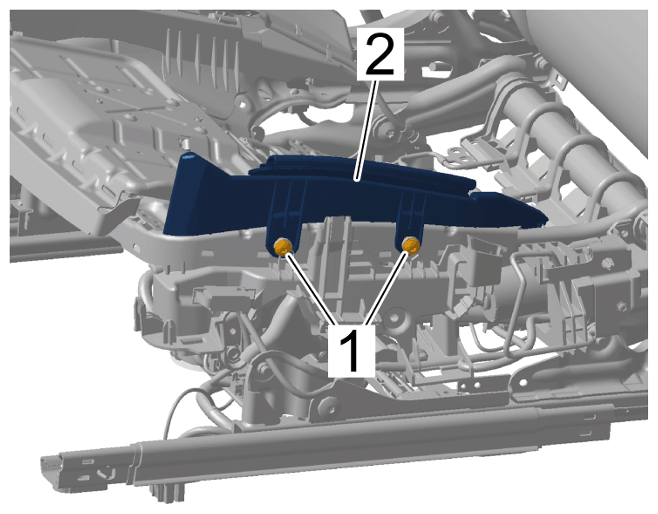

Screw securing air cushion supporting seat to seat frame Item 1 Tightening torque 3 Nm (2.5 ftlb.)
G15240706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for seat

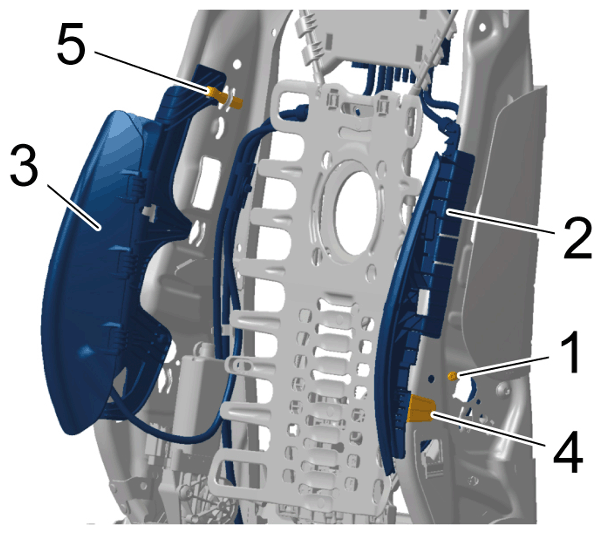

Tightening torque for screw securing air cushion for backrest to backrest frame Item 1 Tightening torque 2.3 Nm (1.8 ftlb.)
G15240707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air cushion for backrest

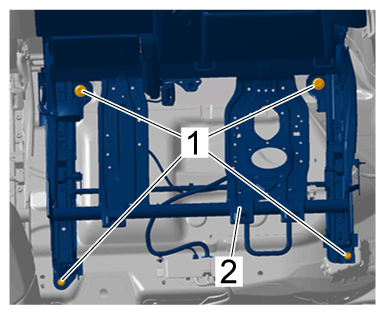

Screws for rear seat frame Item 1 Tightening torque 50 Nm (37 ftlb.)
G15240708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat frame

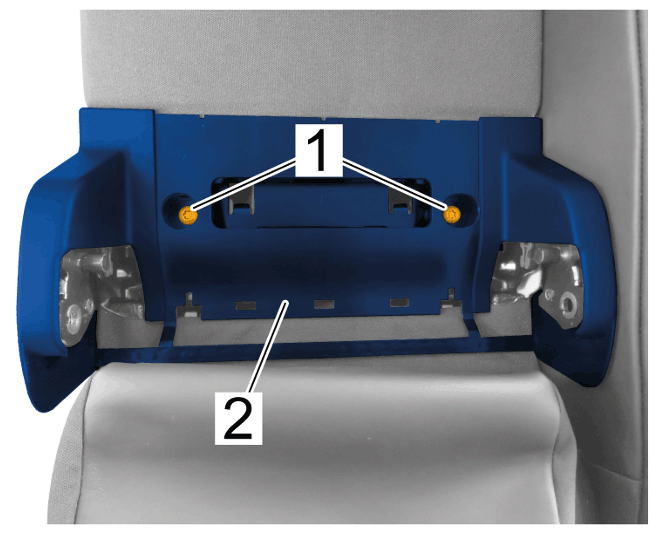

Screw securing armrest holder to load-through provision Item 1 Tightening torque 9 Nm (6.5 ftlb.)
G15240709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest holder

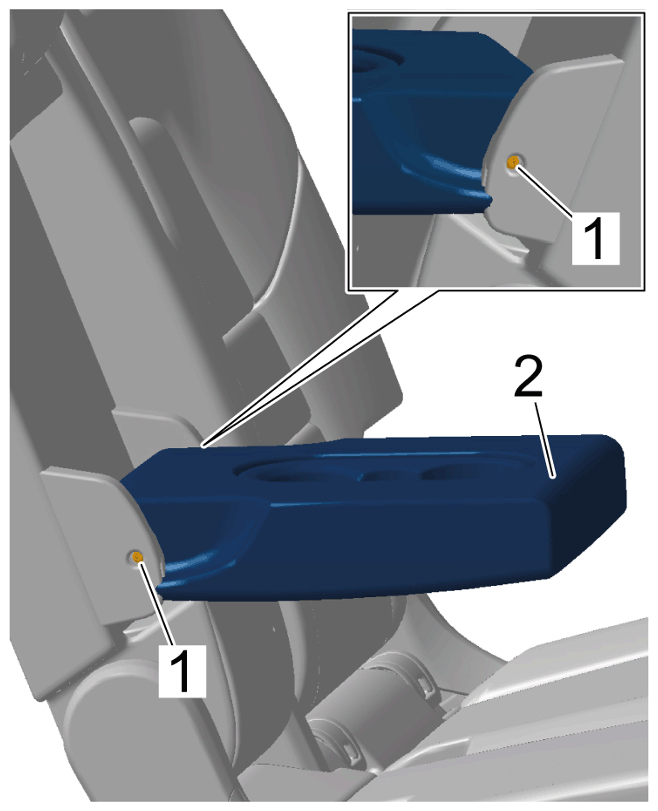

Screw securing armrest with cover to load-through provision Item 1 Tightening torque 7 Nm (5 ftlb.)
G15240710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for armrest

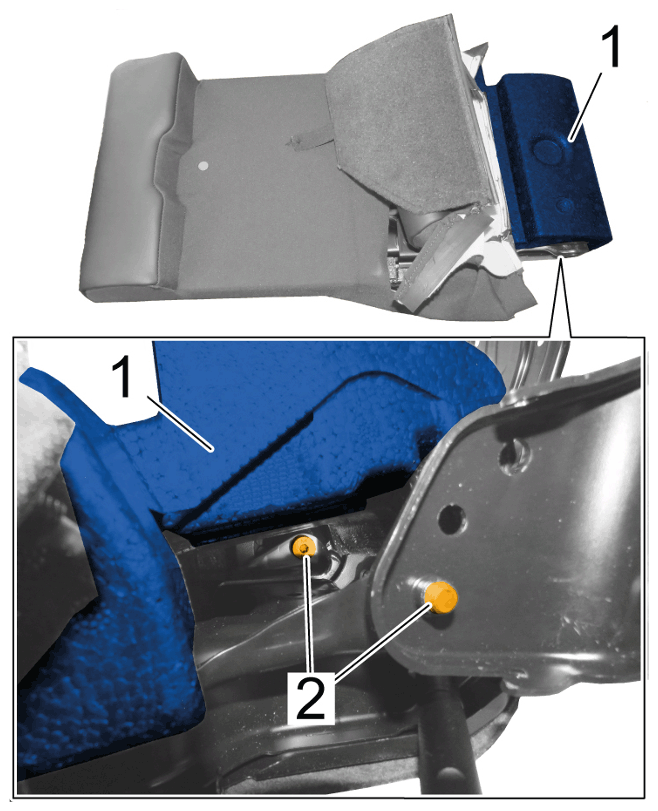

Screw securing load-through provision to holder Item 2 Tightening torque 25 Nm (19 ftlb.)
G15240711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Load-through provision

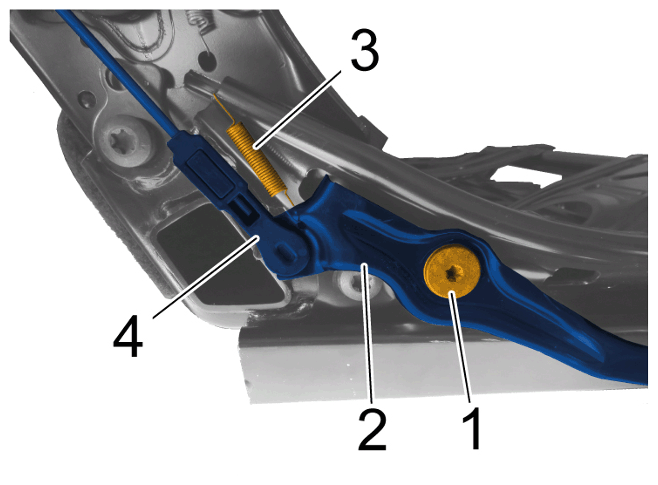

Screw securing release lever to seat frame Item 1 Tightening torque 25 Nm (19 ftlb.)
G15240712Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release lever

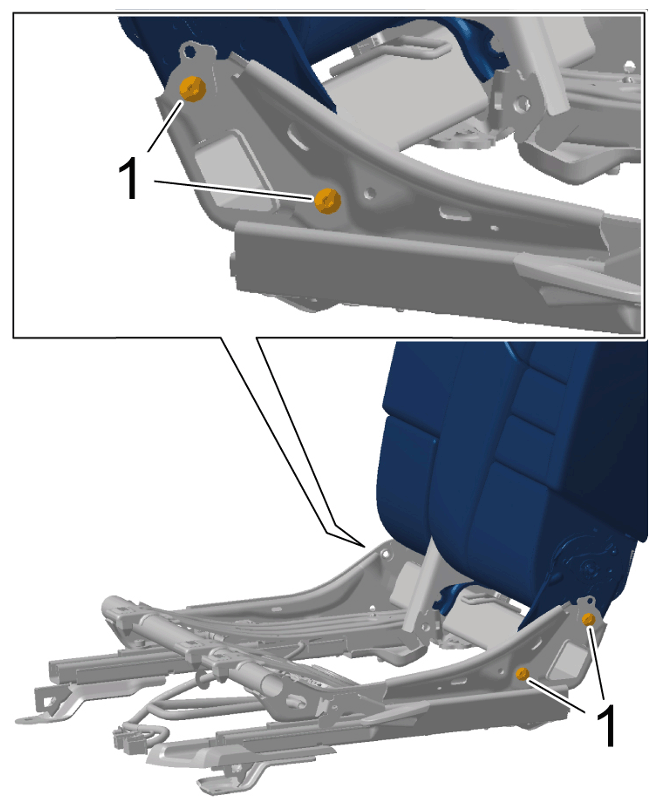

Screw securing backrest to seat frame Item 1 Tightening torque 58 Nm (43 ftlb.)
G15240713Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for backrest

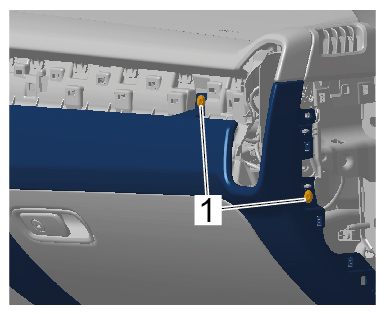

Screw for trim panel for dashboard (passenger's side) Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240714Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim panel for dashboard (passenger's side)

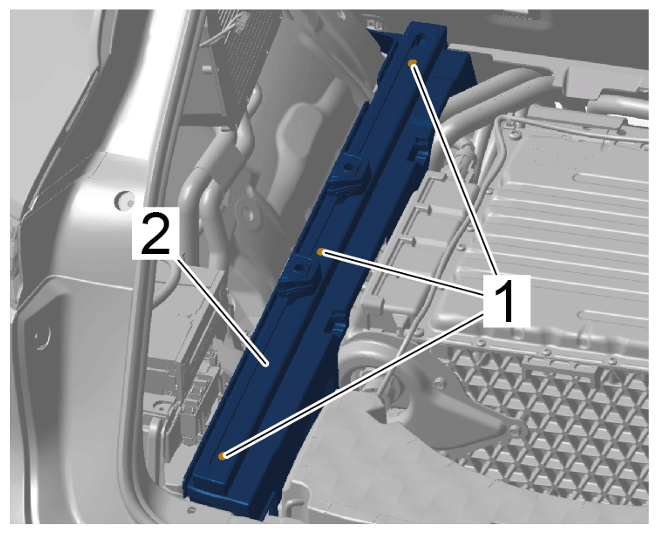

Screw securing luggage rail to body Item 1 Tightening torque 12 Nm (9 ftlb.)
G15240715Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Luggage rail

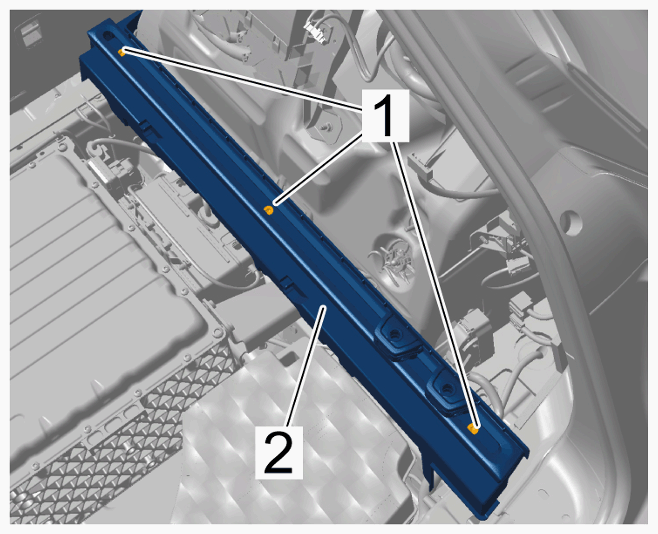

Screw securing luggage rail to body Item 1 Tightening torque 12 Nm (9 ftlb.)
G15240716Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Luggage rail

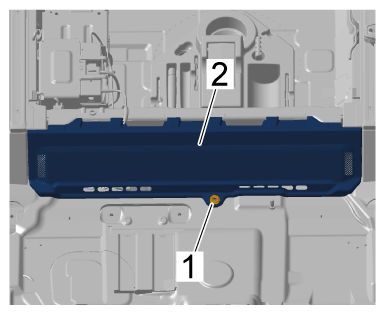

Nut securing front floor cover to body Item 1 Tightening torque 2 Nm (1.5 ftlb.)
G15240717Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front floor cover

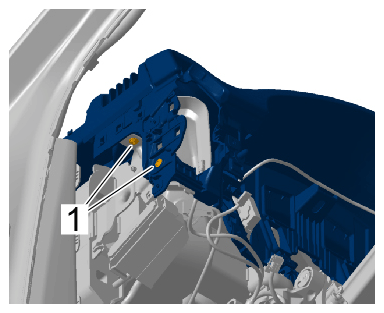

Dashboard Item 1 Tightening torque 3 Nm (2 ftlb.)
G15240718Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side screws, left

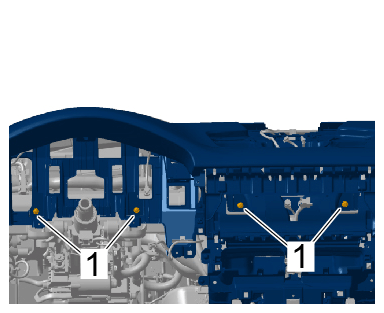

G15240719Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on driver's side

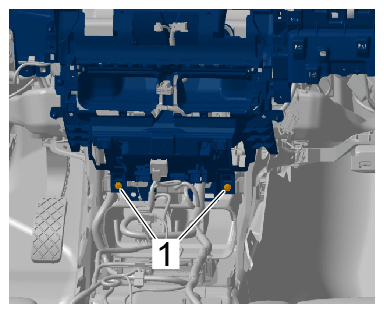

G15240720Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre screws

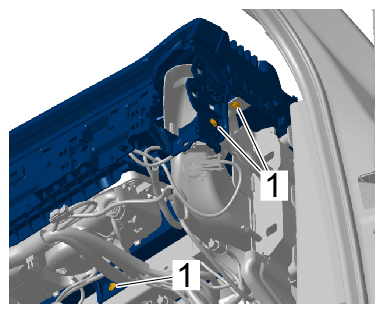

G15240721Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on passenger's side
