7X Body-Equipment Inside General (Coupe) -- 9YB - Cayenne (9YB)
>>
WM, 7X00IN Technical Values
>>
Technical Values
>>
Headliner (Coupe)
Headliner (Coupe)

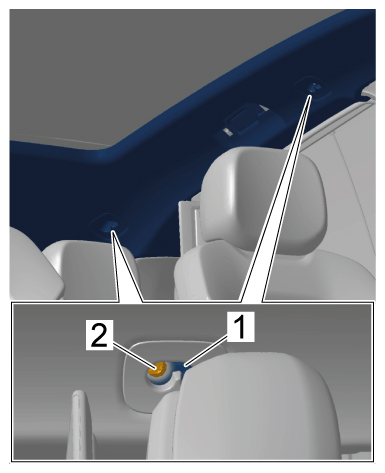

Fig 1: Cover Component Location With Torque Specification
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cover
1
Cover
2
>
Tightening torque 9 Nm (6.5 ftlb.)
