Exhaust System

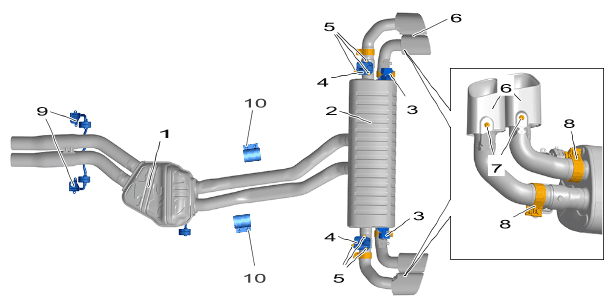

Fig 1: Exhaust System Components Location With Torque Specification - V8 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system - V8 biturbo

1	Exhaust system
2	Rear silencer
3	Screw, M8 >Tightening torque 23 Nm (17 ftlb.)
4	Actuator for exhaust flap on rear silencer
5	Screws, M5 >Tightening torque 5 Nm (3.5 ftlb.)
6	Tailpipe
7	Screws, M6 x 12 >Tightening torque 8 Nm (6 ftlb.)
8	Clamp for tailpipe >Tightening torque 35 Nm (26 ftlb.)
9	Screw, M10 - screwed to tunnel reinforcement plate > Refer to the appropriate service information.
10	Exhaust clamp for rear silencer >Tightening torque 23 Nm (17 ftlb.) Used when replacing rear silencer.
Not shown	Speed nut for heat shield >Tightening torque 2.5 Nm (1.75 ftlb.)
