Removing (Left) Oil Separator

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  • → Protect components from dirt and contamination.
  • → Clean or replace dirty components.

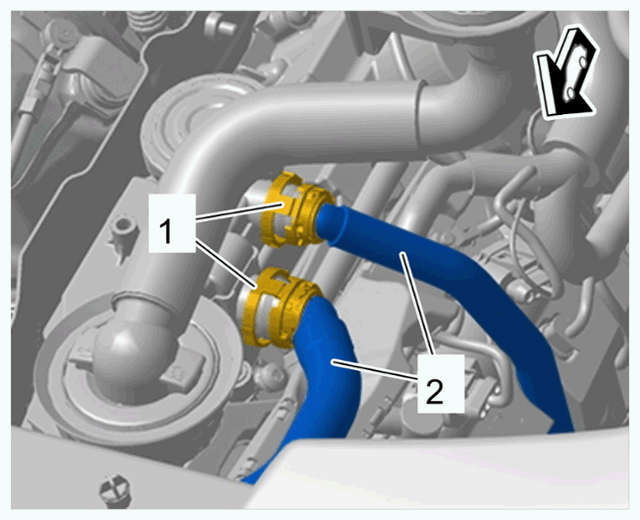

1. Press release buttons on the adapters -1-  and disconnect vent lines -2-  on the (left) oil separator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adapter for oil separator

   Information

   Screws on the oil separator are permanently connected. If screws are damaged, press the screws out of the oil separator and replace them.

2. Remove (left) oil separator -1-  .

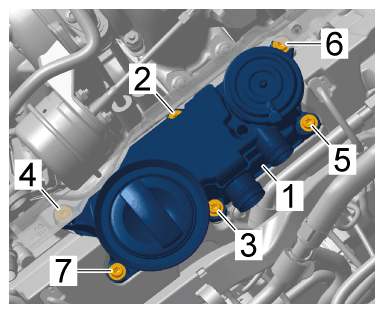

   Fig 1: Oil Separator Screws Loosening Sequence (Left)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil separator (left)

   1. 2.1  Loosen and unscrew screws -2 to 7-  .
   2. 2.2  Remove (left) oil separator -1-  .
