Replacing Positive Crankcase Ventilation Hose

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  • → Protect components from dirt and contamination.
  • → Clean or rep ace dirty components.

Information

• Clean all line connections carefully and close them off or cover them.
• Use suitable stoppers for closing off lines.

Information

• Only unscrew the screw if the positive crankcase ventilation hose needs to be replaced.
• Always ensure that a new screw with the part number 9A710344800 is used.

1. Replace positive crankcase ventilation hose -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

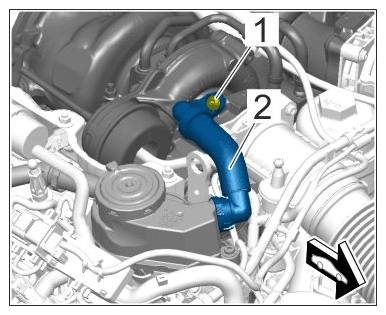

   Positive crankcase ventilation hose

   1. 1.1  Loosen screw -1-  using a multiple-tooth socket wrench (M6).
   2. 1.2  Drive the multiple-tooth socket wrench into the screw head using a hammer.
   3. 1.3  Loosen the screw -1-  using jerking movements and unscrew.
   4. 1.4  Replace positive crankcase ventilation hose - 2-.
   5. 1.5  Fit new screw -1-  and tighten using > VAS 6970 - bit insert  .

      > Tightening torque 9 Nm (6.5 ftlb.)
