Removing Torque Support
WARNING: This page is about a different variant/trim than selected.

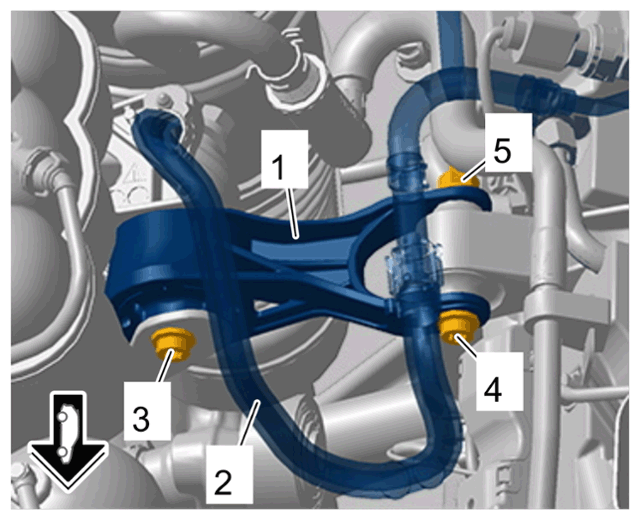

- Remove torque support -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Torque support
- 1.1
Carefully push fuel line -2-
aside.
- 1.2
Unscrew screw for torque support -3-
.
- 1.3
Unscrew screw for torque support -4-
and counter at the nut -5-
.
- 1.4
Remove torque support -1-
.
