Removing Control Unit For Active Drivetrain Mounts
WARNING: This page is about a different variant/trim than selected.
- Release and disconnect electric plug connections for active unit mount control unit.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

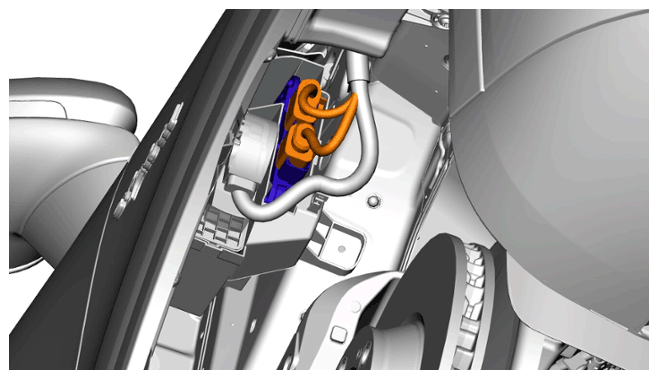

Electric plug connections for active unit mount control unit
- Unclip active unit mount control unit and remove it from the holder.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

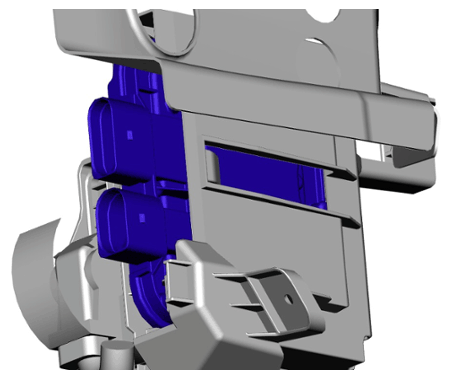

Control unit for active unit mount
