Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove oil guide housing.

    > 174619 REMOVING AND INSTALLING OIL GUIDE HOUSING (V8 BITURBO)

  2. Remove belt tensioner (air-conditioning compressor).

    > 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)

  3. Remove guide tube for oil dipstick -1-  .

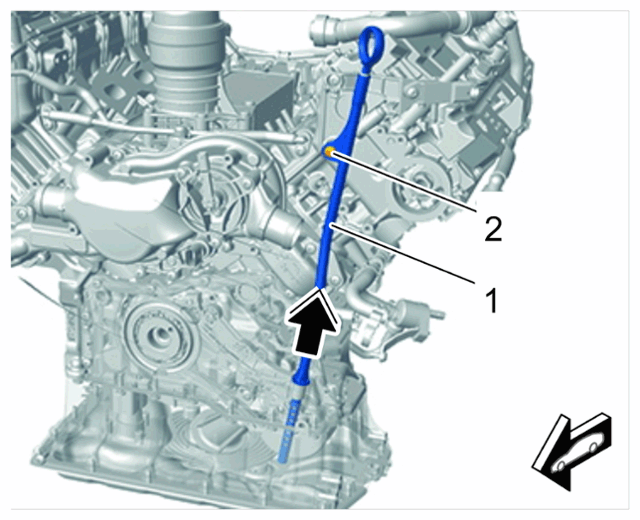

    G15211360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guide tube for oil dipstick

    1. 3.1  Unscrew screw -2-  .
    2. 3.2  Pull guide tube for oil dipstick -1-  up -Arrow-  and remove it.
  4. Remove oil pressure control valve.

    > WM, 172619 REMOVING AND INSTALLING OIL PRESSURE CONTROL VALVE (V8 BITURBO)

  5. Remove crankshaft vibration damper.

    > 137519 REMOVING AND INSTALLING CRANKSHAFT VIBRATION DAMPER (V8 BITURBO)
