Tools And Materials
WARNING: This page is about a different variant/trim than selected.
> VAS 6832 - Master Gear unit elevating platform
> VAS 6832/8 - Universal assembly tool

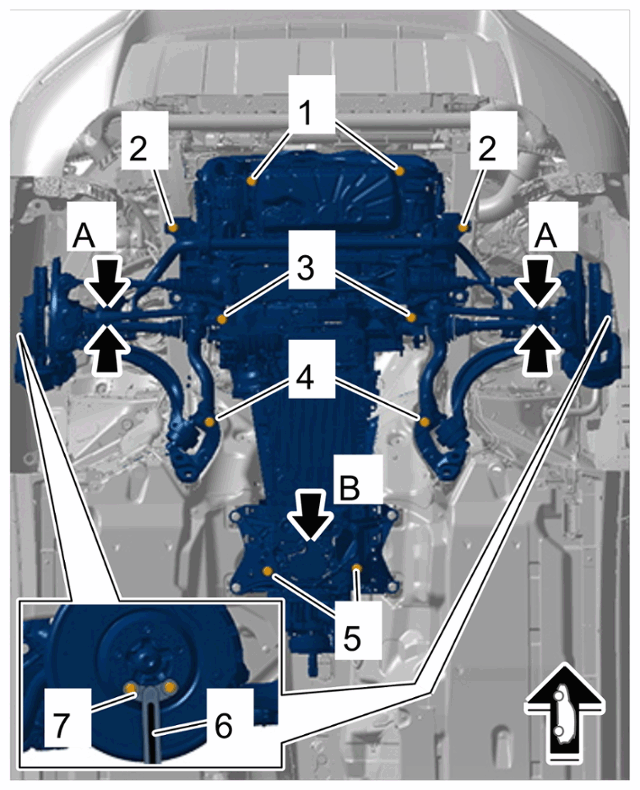

Overview of jacking points for engine
| 1 | Jacking points for oil guide housing - mounting pin 1 |
| 2 | Jacking points for front-axle carrier, front - mounting pin 3 |
| 3 | Jacking points for front-axle carrier, centre - mounting pin 4/5 |
| 4 | Jacking points for front-axle carrier, rear - mounting pin 4/5 |
| 5 | Jacking points for transmission support - mounting pin 6 |
| 6 | Jacking point for wheel hub - short horizontal banner arm |
| 7 | Jacking point for wheel hub - wheel mount |
| A | Jacking point for trailing arm - rubber support |
| B | Jacking point for transmission mount - plate and support plate |
