Subsequent Work: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Install muffler.

    > 825919 REMOVING AND INSTALLING SILENCER

  2. Only if removed:

    Install steering gear.

    > WM, 489019 REMOVING AND INSTALLING POWER-STEERING GEAR

  3. Install Cardan shaft.

    > Removing and installing Cardan shaft

  4. Install exhaust system.

    > WM, 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

  5. Install both front wheel housing liners.

    > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  6. Secure coolant reservoir.

    > WM, 194019 REMOVING AND INSTALLING COOLANT RESERVOIR

  7. Top up coolant.

    > WM, 193817 DRAINING AND FILLING COOLANT (HIGH-TEMPERATURE COOLING SYSTEM)

  8. Install front-axle support.

    > WM, 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT

  9. Only for vehicles with V6:

    Secure air-conditioning compressor.

    > Removing and installing air-conditioning compressor

    > 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR

  10. Only for vehicles with V8:

    Securing refrigerant lines on air-conditioning compressor

    > 874519 REMOVING AND INSTALLING COMPRESSOR/EVAPORATOR LINE (SECTION FROM AIR-CONDITIONING COMPRESSOR TO INTERNAL HEAT EXCHANGER)

  11. Install air box for air cleaner.

    > Removing and installing air-cleaner cowl

  12. Install torque support.

    > Removing and installing torque support

  13. Install intake pipe.

    > WM, 212419 REMOVING AND INSTALLING INTAKE MANIFOLD (V8 TURBO)

  14. Install air cleaner housing.

    > Removing and installing air cleaner housing

  15. Only vehicles with PDK:

    Perform start-up procedure for 48 V vehicle electrical system.

    > Work instruction for 48 V vehicle electrical system

  16. Connect the battery.

    > Removing and installing battery/vehicle electrical system

  17. Connect return line -2-  at the engine connection point.

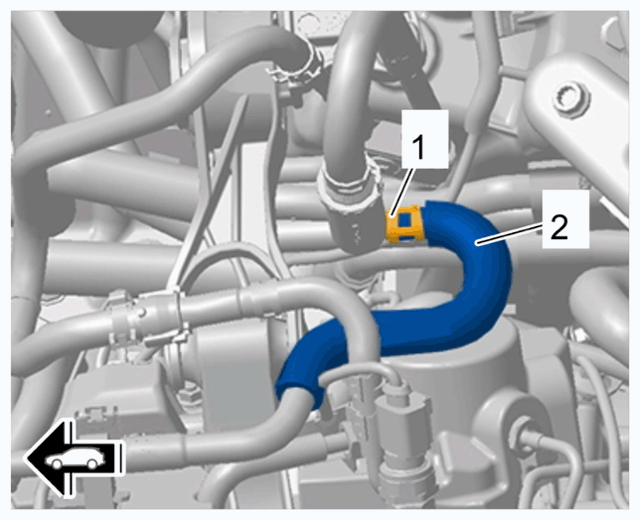

    G15211317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Return line - engine connection point

    1. 17.1  Remove stopper.
    2. 17.2  Secure hose clamp on return line -1-  .
  18. Connect vacuum line -1-  to vacuum reservoir.

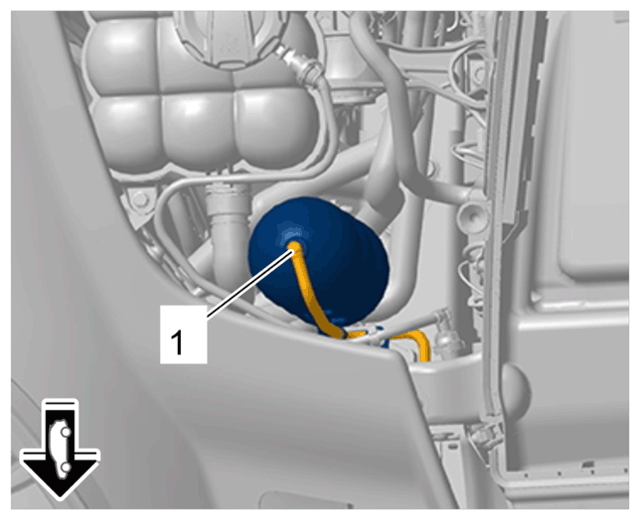

    G15211318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum reservoir

  19. Connect supply line -1-  at connection point in engine compartment.

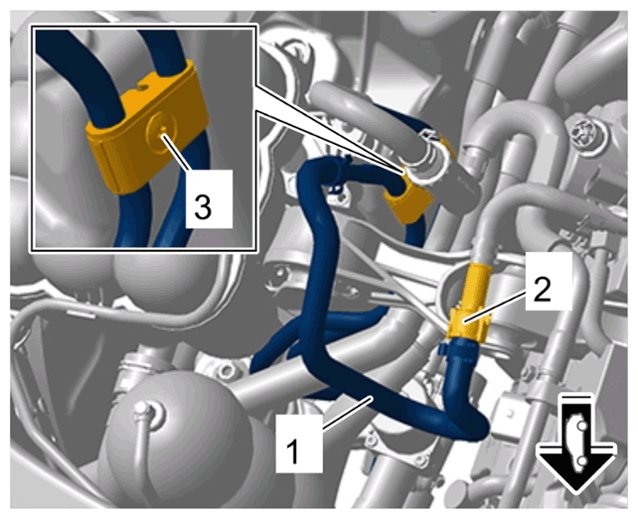

    G15211319Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply line - connection point in engine compartment

    1. 19.1  Remove stopper.
    2. 19.2  Connect and lock quick connector on supply line -2-  in the engine compartment.
  20. Perform suspension alignment.

    > 449503 PERFORMING VEHICLE FRONT AND REAR SUSPENSION ALIGNMENT
