Preliminary Work

WARNING: This page is about a different variant/trim than selected.
WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion
    • → Avoid contact with hot parts or sources of ignition.
    • → Use suction to remove ignitable vapours.
    • → Attach warning sign in a clearly visible position.
    • → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
    • → Secure collection containers/vessels to prevent them from tipping over.
WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin
    • → Ventilate the work area well.
    • → Never ingest or inhale.
    • → Read specific information on the Hazard Sheet.
    • → Wear personal protective gear.
    • → Do not smoke, eat or drink in the work area.
  1. Attach or mount a warning sign in a clearly visible position on the vehicle.
    G15211246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Example of a warning sign

    Information

    • The position of the fuse for the fuel pump can be found in the current Porsche After Sales vehicle electrical system documentation (PAB) fuse assignment.
    • →PPN  →Porsche After Sales vehicle electrical system documentation (PAB)
  2. Relieve fuel pressure in the system.
    1. 2.1  Pull out the fuse for the fuel pump.
    2. 2.2  Start the engine, wait until it cuts out and then re-insert the fuse.

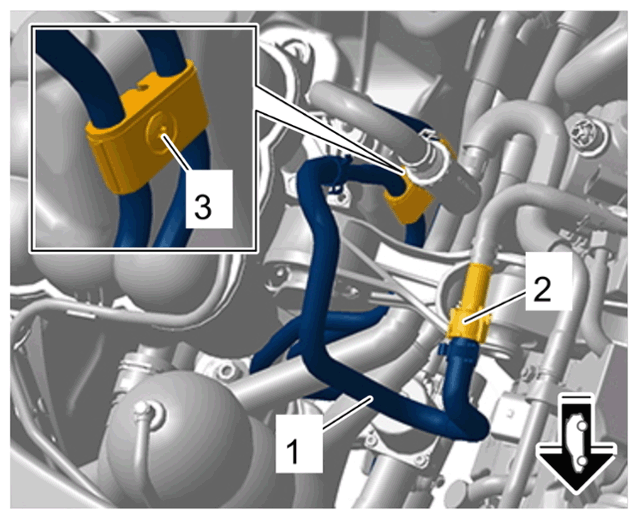

  3. Disconnect supply line -1-  at connection point in engine compartment.
    G15211247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Supply line - connection point in engine compartment

    1. 3.1  Have suitable aids ready for collecting emerging fuel.
    2. 3.2  Have suitable stoppers ready for closing off the line connections.
    3. 3.3  Release and disconnect quick connector on supply line -2-  in the engine compartment.
    4. 3.4  Collect emerging fuel.
    5. 3.5  Close off line connections using suitable stoppers.

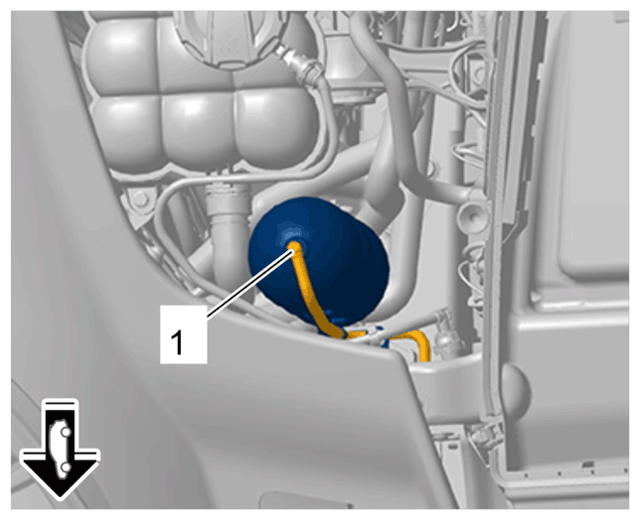

  4. Disconnect vacuum line -1-  from vacuum reservoir.
    G15211248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum reservoir

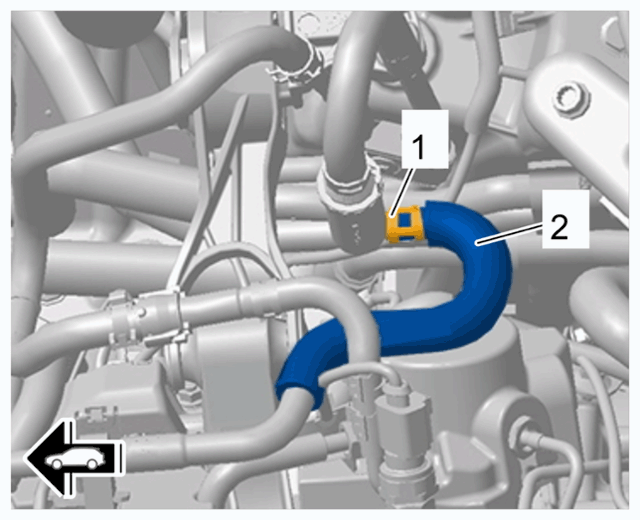

  5. Disconnect return line -2-  at the engine connection point.
    G15211249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Return line - engine connection point

    1. 5.1  Have suitable aids ready for collecting emerging fuel.
    2. 5.2  Have suitable stoppers ready for closing off the line connections.
    3. 5.3  Loosen hose clamp on return line -1-  in the engine compartment.
    4. 5.4  Pull off return line -2-  .
    5. 5.5  Collect emerging fuel.
    6. 5.6  Close off line connections using suitable stoppers.
  6. Disconnect the battery.

    > Removing and install battery/vehicle electrical system

  7. Only vehicles with PDK:

    Disconnect 48-volt vehicle electrical system.

    > Work instruction for 48 V vehicle electrical system

  8. Removing air cleaner housing.

    > Removing and installing air cleaner housing

  9. Remove intake pipe.

    > WM, 212419 REMOVING AND INSTALLING INTAKE MANIFOLD (V8 TURBO)

  10. Remove torque support.

    > Removing and installing torque support

  11. Remove air-cleaner cowl.

    > Removing and installing air-cleaner cowl

  12. Only for vehicles with V8:

    Disconnect refrigerant lines at the air-conditioning compressor.

    > 874519 REMOVING AND INSTALLING COMPRESSOR/EVAPORATOR LINE (SECTION FROM AIR-CONDITIONING COMPRESSOR TO INTERNAL HEAT EXCHANGER)

  13. Only for vehicles with V6:

    Remove air-conditioning compressor with refrigerant lines connected in a downward direction and hang them at a suitable position.

    > 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR

  14. Remove front-axle support.

    > WM, 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT

  15. Drain coolant.

    > WM, 193817 DRAINING AND FILLING COOLANT (HIGH-TEMPERATURE COOLING SYSTEM)

  16. Loosen coolant reservoir.

    > WM, 194019 REMOVING AND INSTALLING COOLANT RESERVOIR

  17. Remove both front wheel housing liners.

    > WM, 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER

  18. Remove exhaust system.

    > WM, 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

  19. Remove Cardan shaft.

    > Removing and installing Cardan shaft

  20. Only if automatic transmission is removed following removal:

    Removing steering gear

    > WM, 489019 REMOVING AND INSTALLING POWER-STEERING GEAR

  21. Remove silencer.

    > 825919 REMOVING AND INSTALLING SILENCER
