Removing Piston Spray Nozzle Control Valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

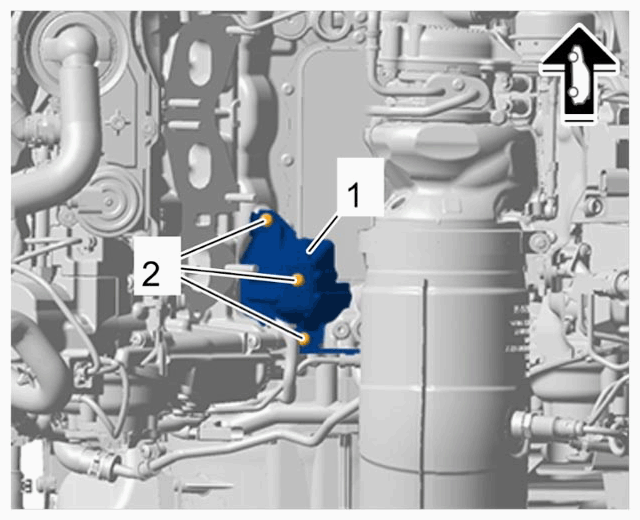

Heat shield

1. 1.1  Unscrew screws on the heat shield -2-  .
2. 1.2  Remove heat shield -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

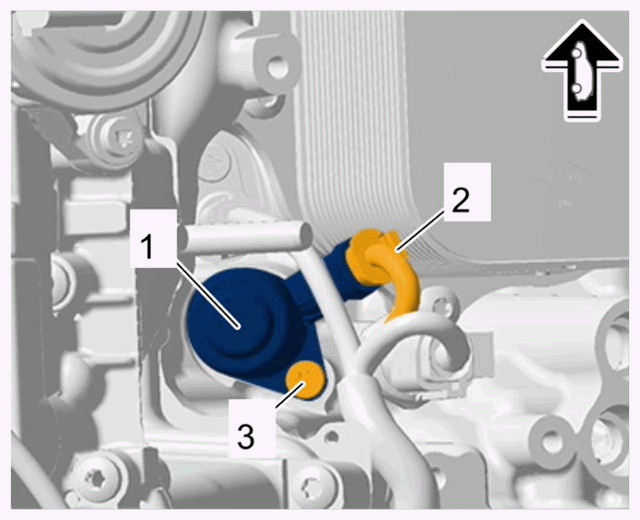

Piston spray nozzle control valve

1. 2.1  Release and disconnect electric plug connection -2-  .
2. 2.2  Unscrew screw -3-  .
3. 2.3  Remove piston spray nozzle control valve -1-  .
