Removing Oil Level Sensor
WARNING: This page is about a different variant/trim than selected.
- Have a cloth or container ready to collect emerging oil.
- Remove oil level sensor -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

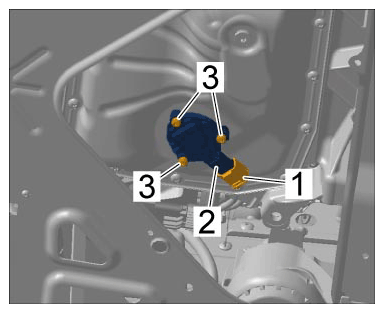

Removing oil level sensor
- 2.1
Release and disconnect electric plug connection for oil level sensor -1-
.
- 2.2
Unscrew screws for oil level sensor -3-
and remove oil level sensor -2-
.
