Installing Oil Level Sensor

WARNING: This page is about a different variant/trim than selected.

Replace sealing ring for oil level sensor.
Install oil level sensor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

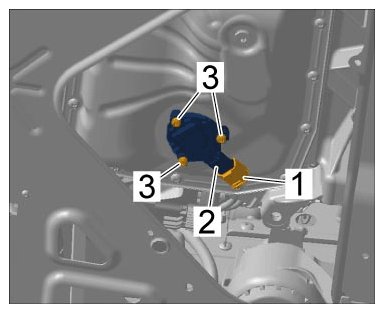

Fitting oil level sensor
1. 2.1 Insert oil level sensor -2- and screw in screws for oil level sensor -3- by hand.
2. 2.2 Connect and lock electric plug connection for oil level sensor -1- .
3. 2.3 Tighten screws for oil level sensor.
  > Tightening torque 9 Nm (6.5 ftlb.) > Tightening torque 9 Nm (6.5 ftlb.)
