Removing Oil Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

Information

Graphics in this document may differ from the original.

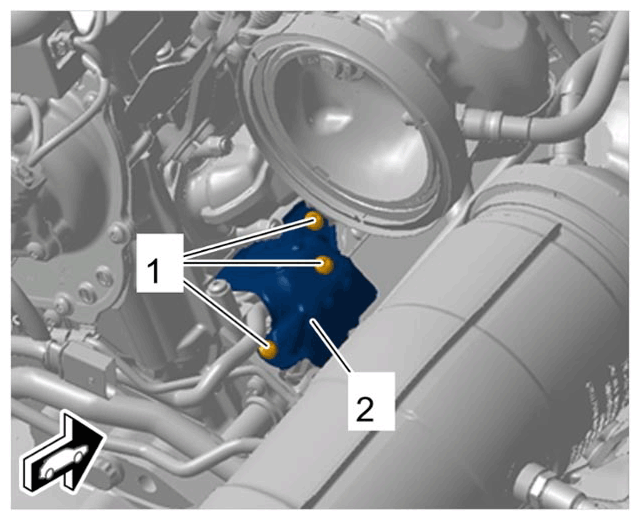

Unscrew screws -1- and remove heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

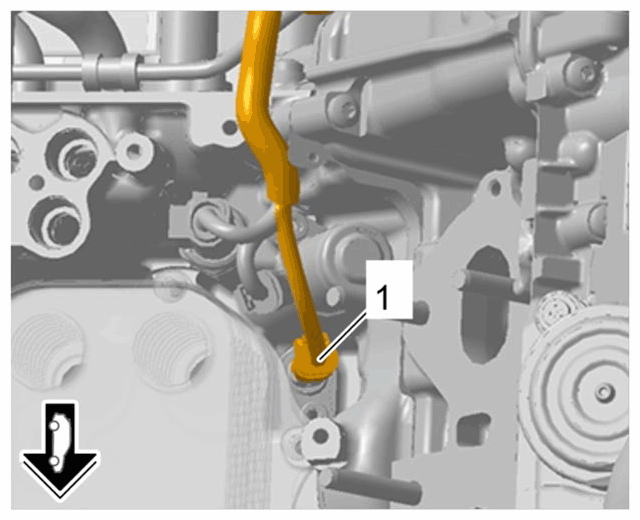

Release and disconnect electric plug connection for oil temperature sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

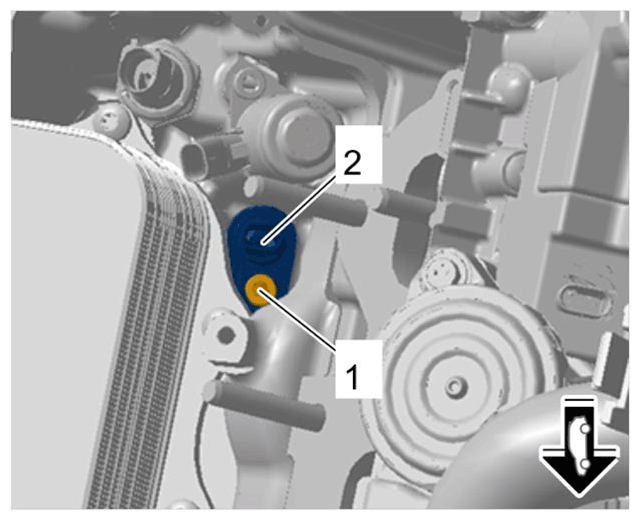

Unscrew screw on oil temperature sensor -1- and pull out oil temperature sensor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil temperature sensor
