Removing Primary Catalytic Converter

Information

• Treat corroded components with anti-rust agent or heat.

Information

• The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

1. Screw off nuts -1-  on the exhaust flange.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Nuts on exhaust flange

2. Remove primary catalytic converter -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

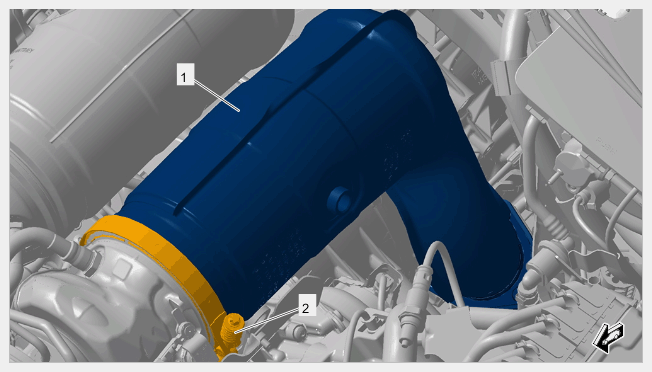

   Primary catalytic converter on cylinder bank 2

   1. 2.1  Loosen and remove V-band clamp -2-  .
   2. 2.2  Guide primary catalytic converter -1-  up and out.
