Removing Exhaust Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Remove exhaust temperature sensor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

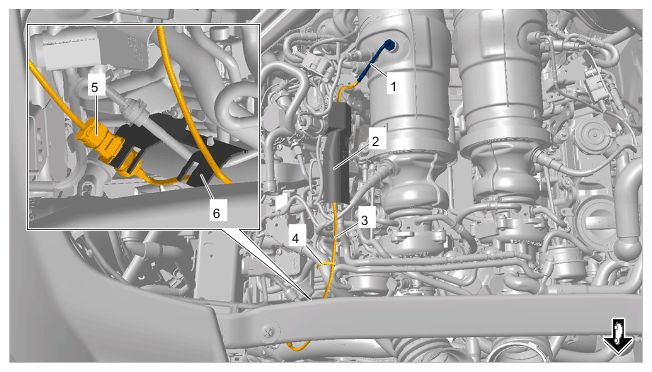

Exhaust temperature sensor
1. 1.1 Mark installation position of exhaust temperature sensor -1- .
2. 1.2 Only for exhaust temperature sensor at the right:
  Open heat shield -2- and remove electric line -3- .
3. 1.3 Cut tie-wrap -4- .
4. 1.4 Release and disconnect cable plug -5- and unclip it from the holder -6- .
5. 1.5 Unscrew and remove exhaust temperature sensor -1- .
