Removing Exhaust Flap Actuator

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.
  1. Remove exhaust flap actuator -1-  .

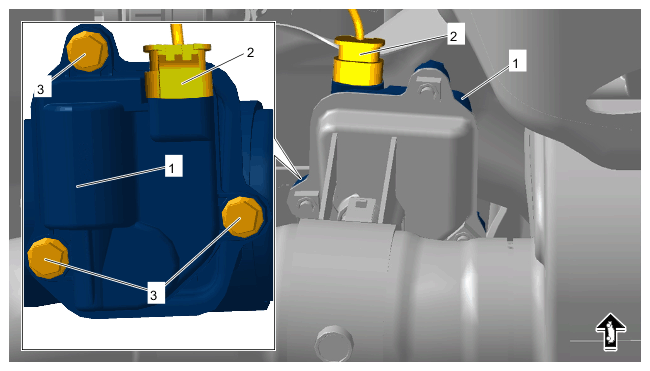

    G15258475Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Exhaust flap actuator

    1. 1.1  Release and disconnect electric plug connection for exhaust flap actuator -2-  .
    2. 1.2  Unscrew screws on exhaust flap actuator -3-  .
    3. 1.3  Pull exhaust flap actuator -1-  up out of the exhaust pipe.
