Removing Twin Tailpipe

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.
  1. Remove twin tailpipe -1 and 2-  .

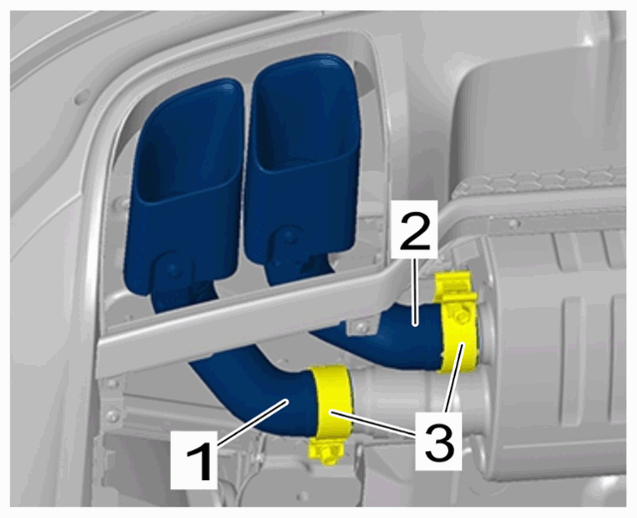

    G15258471Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Twin tailpipe

    1. 1.1  Mark the installation position of the tailpipes.
    2. 1.2  Loosen screws on clamps -3-  .
    3. 1.3  Pull outer tailpipe -1-  off the rear silencer.
    4. 1.4  Pull inner tailpipe -2-  off the rear silencer.
