Removing Heat Shields For Tunnel At The Left

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shields for tunnel at the left -1 and 2-  and holders -3-  .

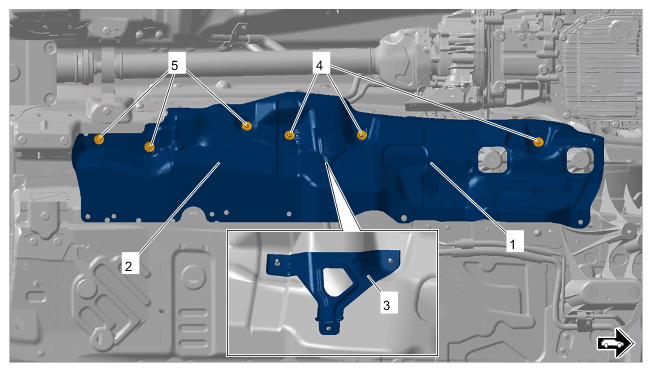

    G15258425Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shields for tunnel at the left

    1. 1.1  Unscrew speed nuts -4-  .
    2. 1.2  Remove heat shields for tunnel at the left -1 and 2-  and holders -3-  .
