Removing Heat Shields For Tailpipes

WARNING: This page is about a different variant/trim than selected.

Information

The removal steps are described for one side. Removal on the other side is identical.

  1. Remove heat shield for tailpipe -1-  .

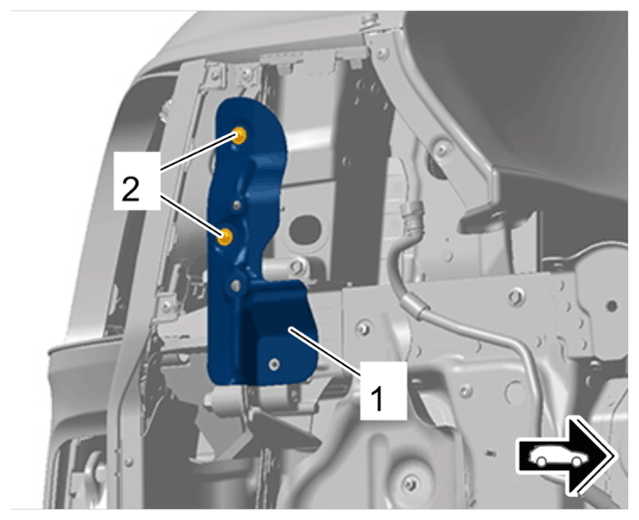

    G15258420Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for tailpipe

    1. 1.1  Unscrew and remove screws -2-  .
    2. 1.2  Remove heat shield for tailpipe -1-  .
