Installing Heat Shields For Tailpipes

WARNING: This page is about a different variant/trim than selected.

Information

The installation steps are described for one side. Installation on the other side is identical.

  1. Install heat shield for tailpipe -1-

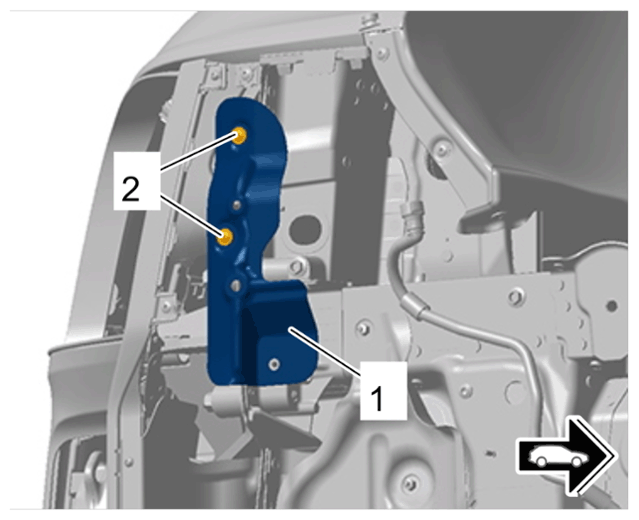

    G15258426Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for tailpipe

    1. 1.1  Position heat shield for tailpipe -1-  .
    2. 1.2  Tighten screws -2-  .

      > Tightening torque 2.5 Nm (1.75 ftlb.)
