Installing Heat Shield For Fuel Tank

WARNING: This page is about a different variant/trim than selected.
  1. Install heat shield for fuel tank -1-  .

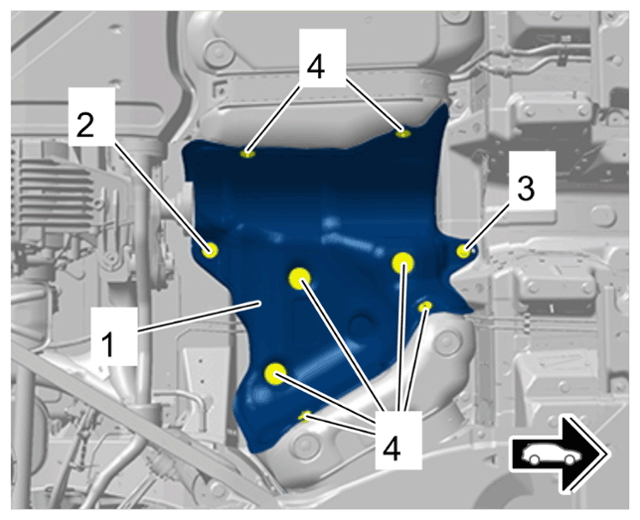

    G15258428Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for fuel tank

    1. 1.1  Position heat shield for fuel tank -1-  .
    2. 1.2  Tighten screw -2-  .

      > Torque 20 Nm (14.8 ftlb.)

    3. 1.3  Tighten screw -3-  .

      > Tightening torque 20 Nm (14.8 ftlb.)

    4. 1.4  Press on clamping washers -4-  .
