Installing Heat Shield On Left Longitudinal Member
WARNING: This page is about a different variant/trim than selected.
- Install heat shield on left longitudinal member -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

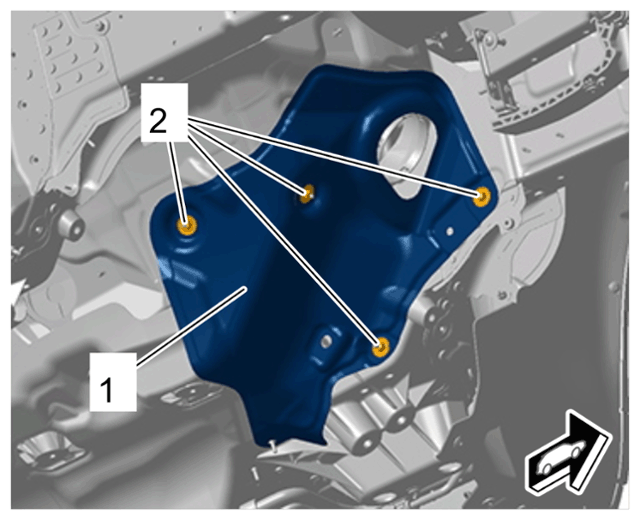

Heat shield on left longitudinal member
- 1.1
Position heat shield on left longitudinal member -1-
.
- 1.2
Tighten speed nuts -2-
.
> Tightening torque 2.5 Nm (1.75 ftlb.)
