Installing Heat Shield On Front Right Longitudinal Member

WARNING: This page is about a different variant/trim than selected.

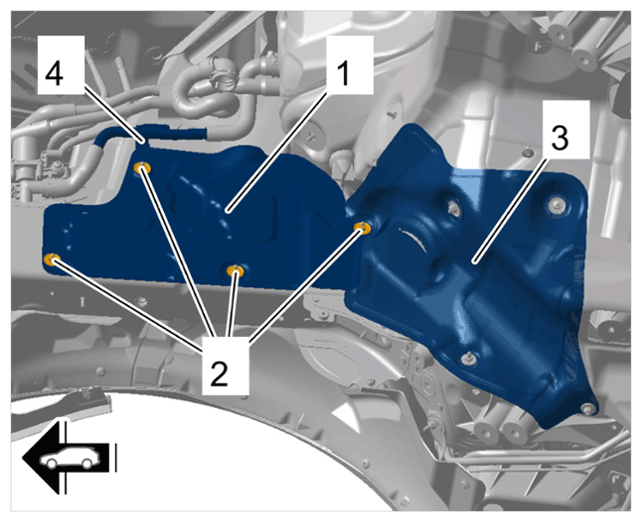

  1. Install heat shield on front right longitudinal member -1-  .
    G15258447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on front right longitudinal member

    1. 1.1  Position heat shield on front right longitudinal member -1-  .
    2. 1.2  Position heat shield on right longitudinal member -3-  and holder -4-  .
    3. 1.3  Tighten speed nuts -2-  .

      > Tightening torque 5 Nm (3.5 ftlb.)
