Removing Exhaust System

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

CAUTION: Heavy components

Risk of squashing
1. → Wear personal protective gear.
2. → Get someone to help if necessary.

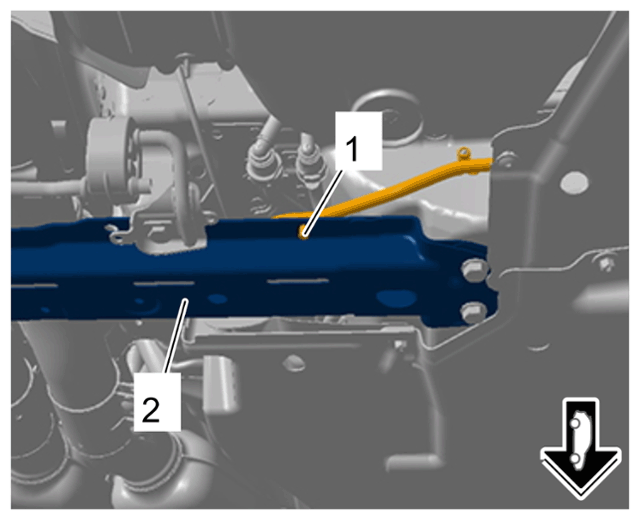

Unclip line clip -1- from tunnel strut -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line clip on tunnel strut

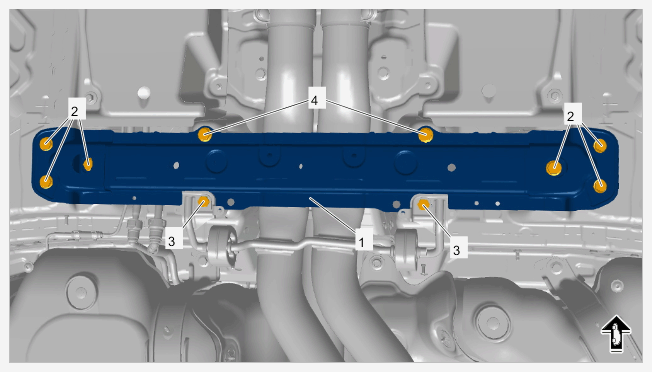

Remove tunnel strut -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tunnel strut
1. 2.1 Unscrew screws -2, 3 and 4- and remove tunnel strut

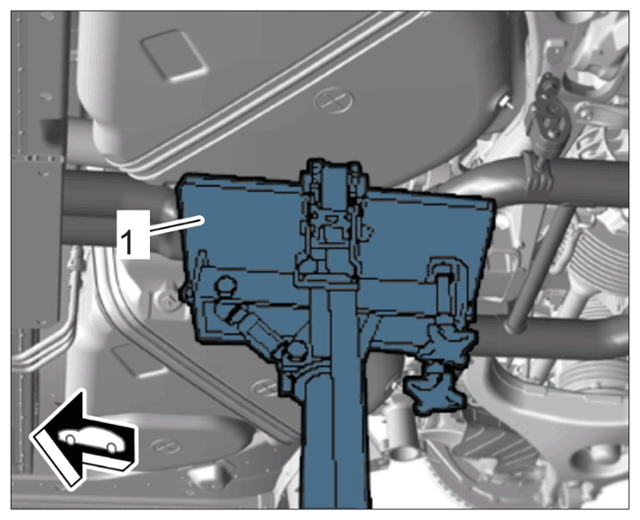

Secure the exhaust system using > VAS 6931 - engine and gearbox jack-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)
1. 3.1 Position > VAS 6931 - engine and gearbox jack-1- under the exhaust system in such a way that both pipes can be supported at the same time.
2. 3.2 Guide tension strap around both pipes and secure it.
3. 3.3 Raise the exhaust system slightly.

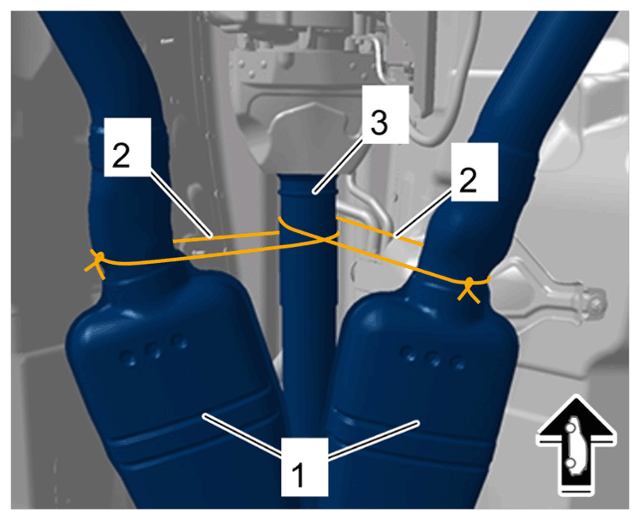

Make sure the catalytic converters -1- do not snap off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Catalytic converter secured
1. 4.1 Secure catalytic converters -1- with pieces of wire/tie-wraps -2- on the cardan shaft -3- .

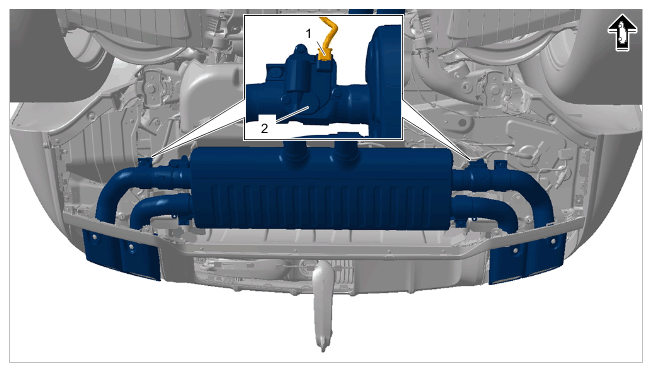

Release and disconnect electric plug connection -1- on servo motor for exhaust flap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on servo motor for exhaust flap

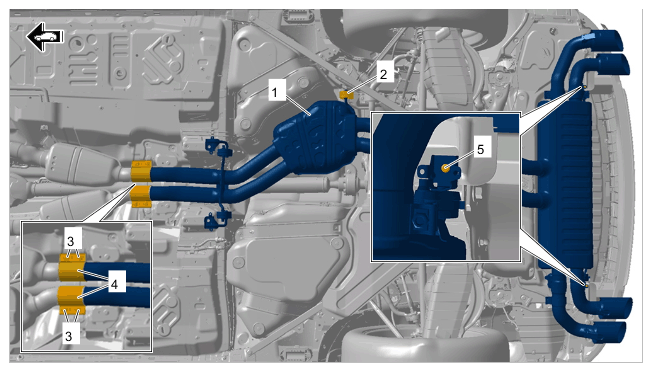

Loosen exhaust system -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system
1. 6.1 Pull rubber holder -2- off the exhaust bracket.
2. 6.2 Loosen screws -3- and push clamps -4- towards the exhaust system -1- .
3. 6.2.1 Replace clamp -4- .
4. 6.3 Unscrew screws -5- .

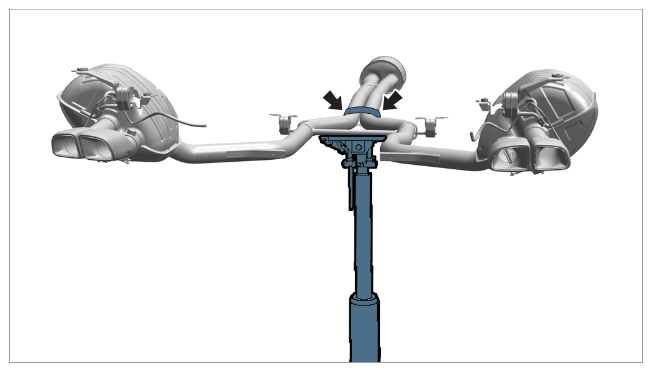

Remove exhaust system.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)
1. 7.1 Guide the exhaust system, which is secured with a tension strap -Arrows- , downwards using the > VAS 6931 - engine and gearbox jack .
