Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Loosen centre cover.

    > WM, 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY

  2. Removing rear cover.

    > WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

  3. Removing tailpipe trims -1-  .

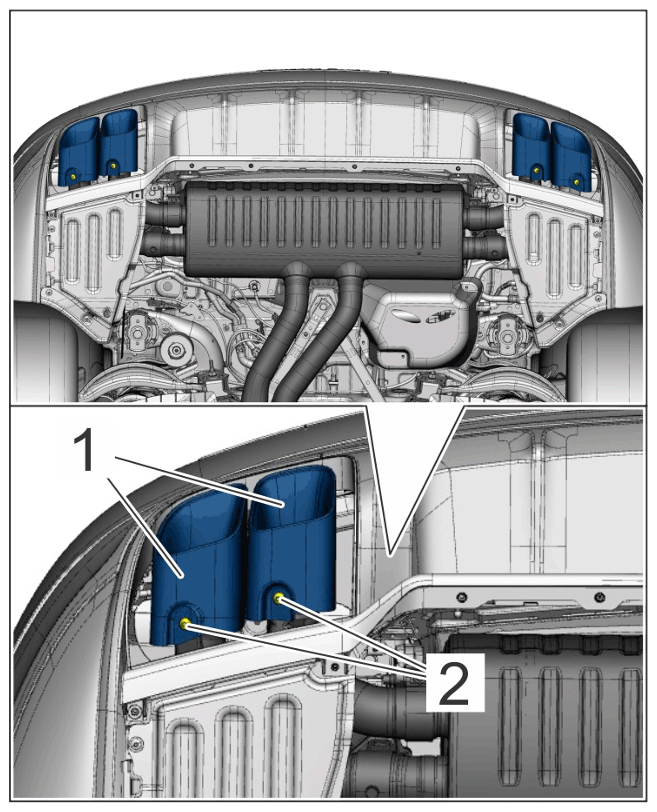

    G15258386Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tailpipe trims (shown as an example)

    1. 3.1  Unscrew screws -2-  .
    2. 3.2  Remove tailpipe trims -1-  .
