Installing Exhaust System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

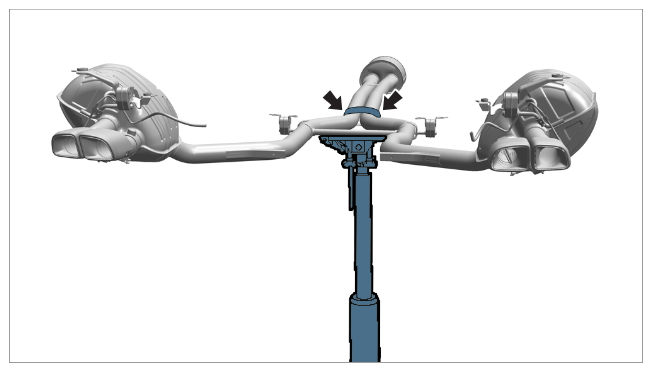

Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)

1. 1.1  Position exhaust system on > VAS 6931 - engine and gearbox jack  and secure with a tension strap -Arrows-  .
2. 1.2  Guide the exhaust system, which is secured with a tension strap -Arrows-  , upwards using the > VAS 6931 - engine and gearbox jack  and position it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

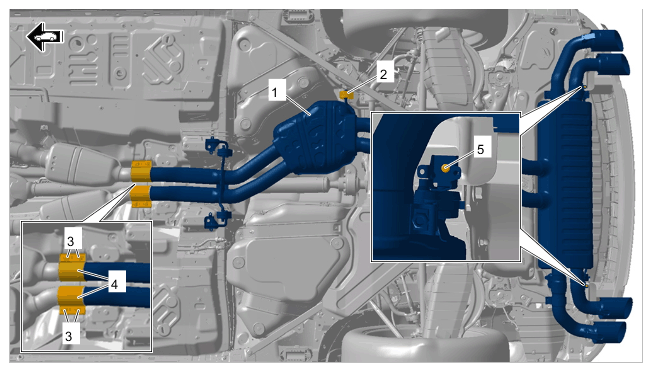

Exhaust system

1. 2.1  Push rubber holder -2-  onto the exhaust bracket.
2. 2.2  Fit screws -5-  , but do not tighten yet.
3. 2.3  Position new clamp -4-  and tighten screws -3-  .

   > Tightening torque 23 Nm (17 ftlb.)

4. 2.4  Tighten screws -5-  .

   > Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

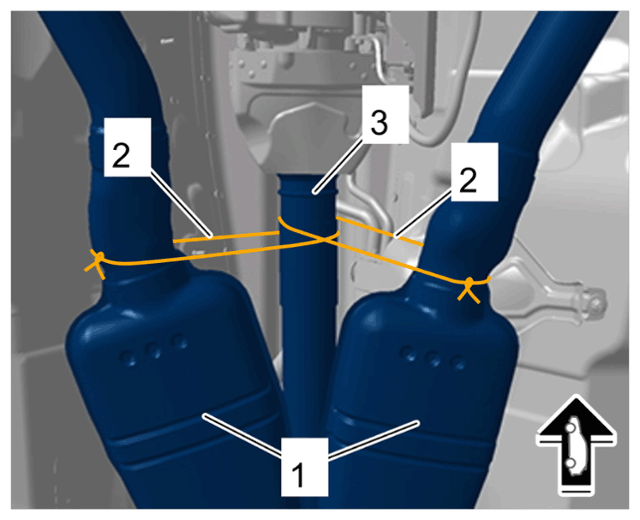

Catalytic converter secured

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

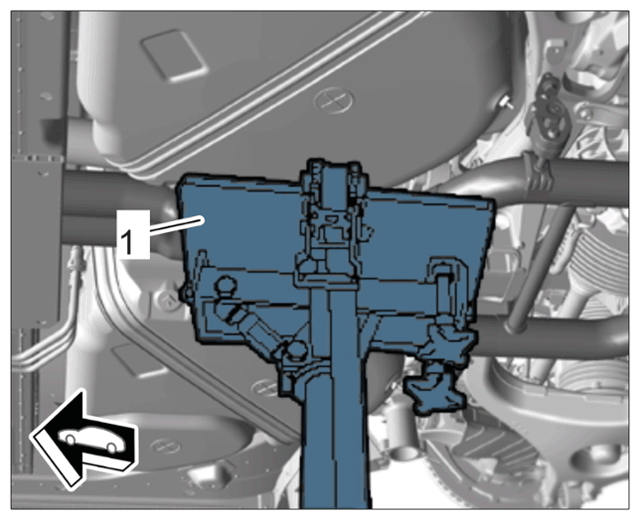

Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

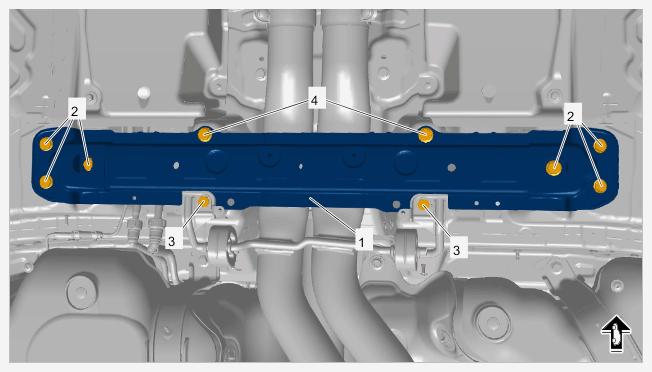

Tunnel strut

1. 5.1  Position tunnel strut -1-  and fit screws -2, 3 and 4-  .
2. 5.2  Tighten screws -2, 3 and 4-  .

   > Tightening torque 49 Nm (36 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

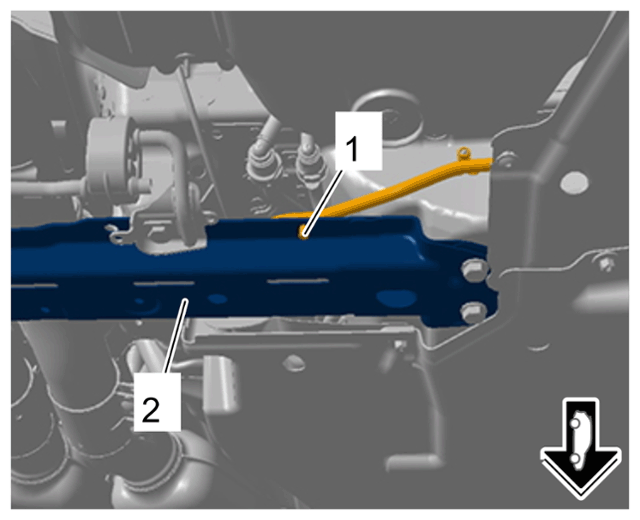

Line clip on tunnel strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

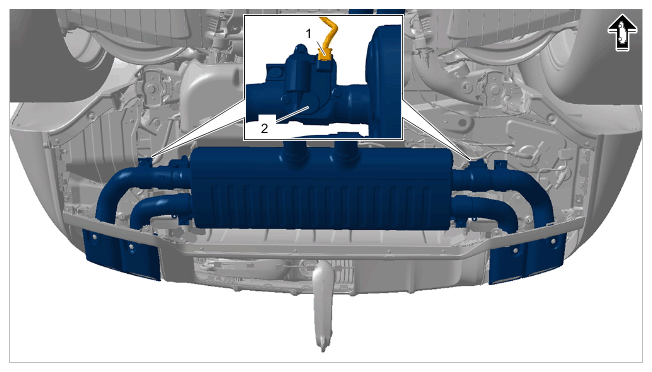

Electric plug connection on servo motor for exhaust flap
