Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

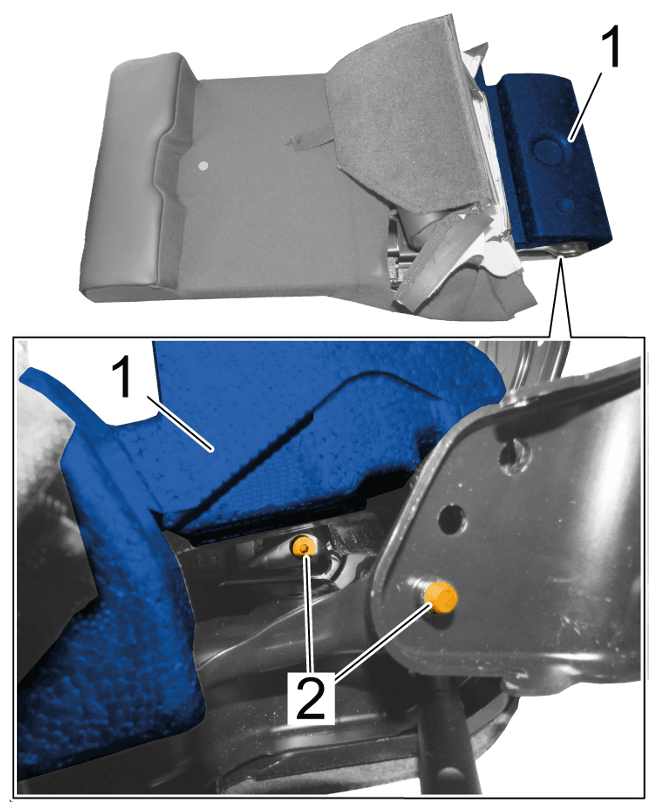

| Screw securing armrest holder to load-through provision |
Item 1 |
Tightening torque |
9 Nm (6.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Armrest holder |
|
|
|
|
|

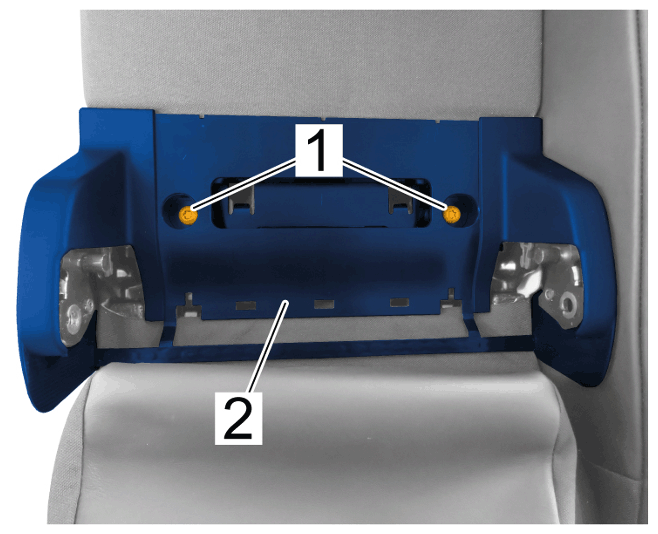

| Screw securing load-through provision to holder |
Item 2 |
Tightening torque |
25 Nm (19 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Load-through provision |
|
|
|
|
|
