Removing Load-Through Provision

WARNING: This page is about a different variant/trim than selected.

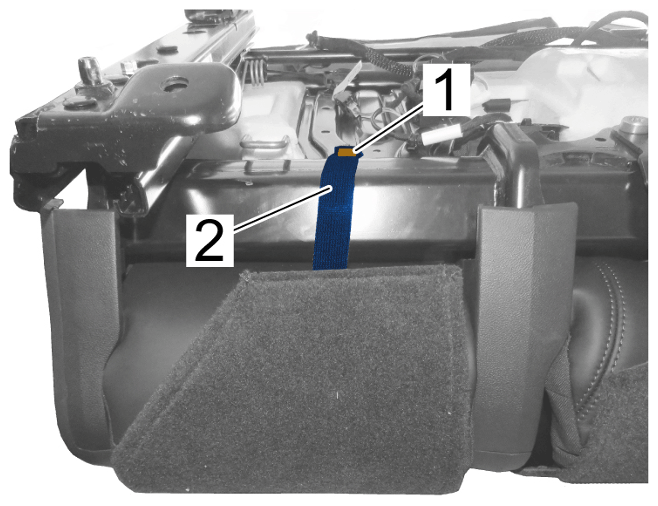

Remove clip -1- on the rubber strap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip

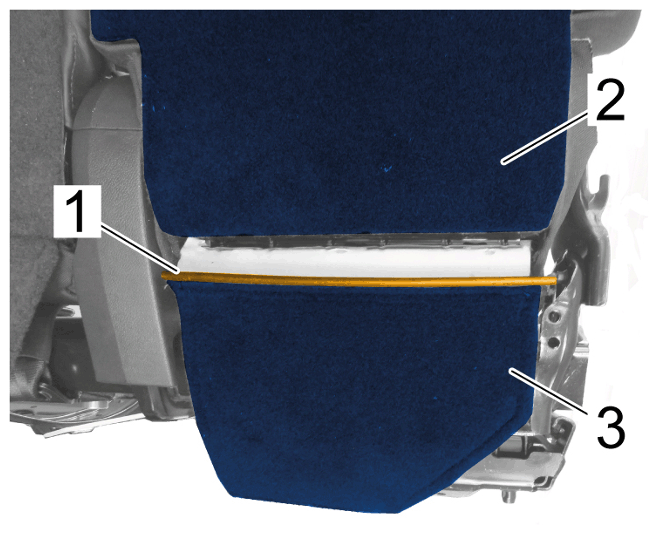

Disengage clamping strip -1- on the backrest frame -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamping strip for rear seat cover
Detach rear seat cover in the lower area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat cover

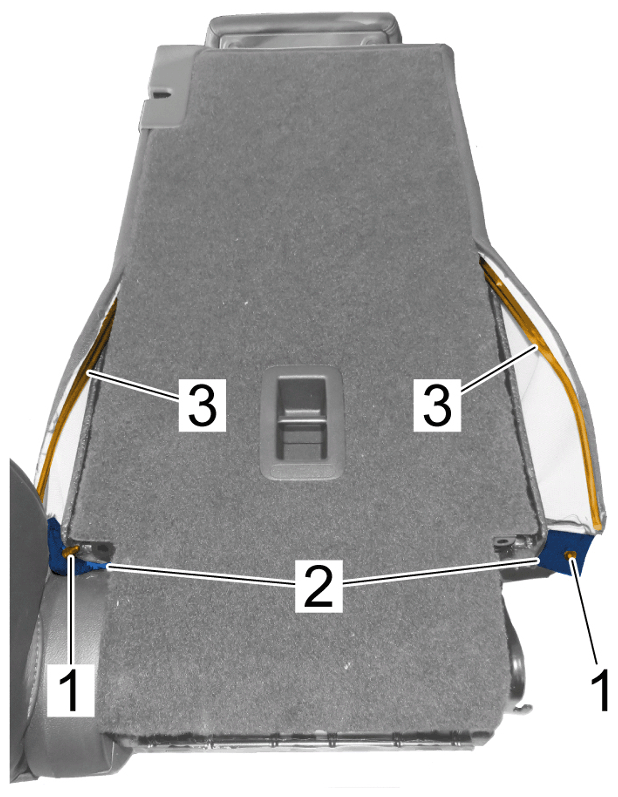

1. 3.1 Loosen clips -1- .
2. 3.2 Fold the tabs -2- out.
  Information

  Disengage the clamping strips from the backrest frame carefully to prevent the seat cover from tearing at the corners.
3. 3.3 Disengage clamping strips -3- from the backrest frame.
Move the tab of the rear seat cover -3- forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tab of rear seat cover

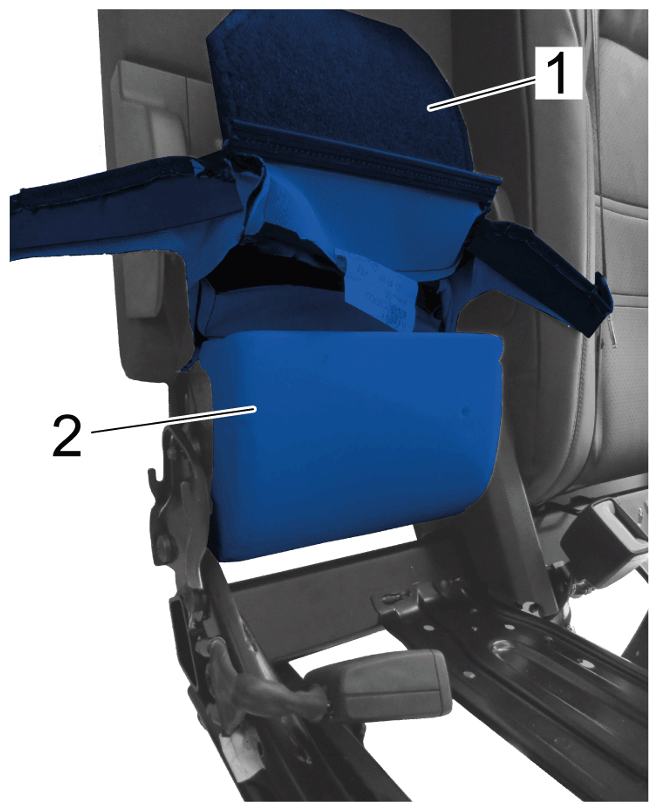

Move rear seat cover -1- upwards and remove foam part -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Foam part

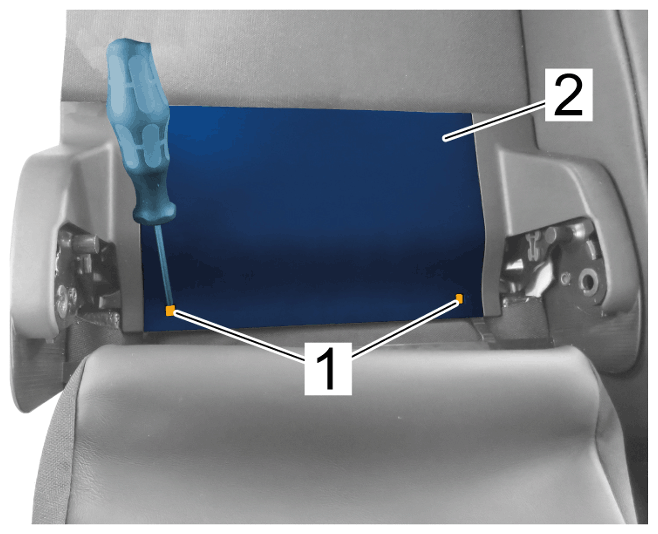

Release locking lugs -1- and remove cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

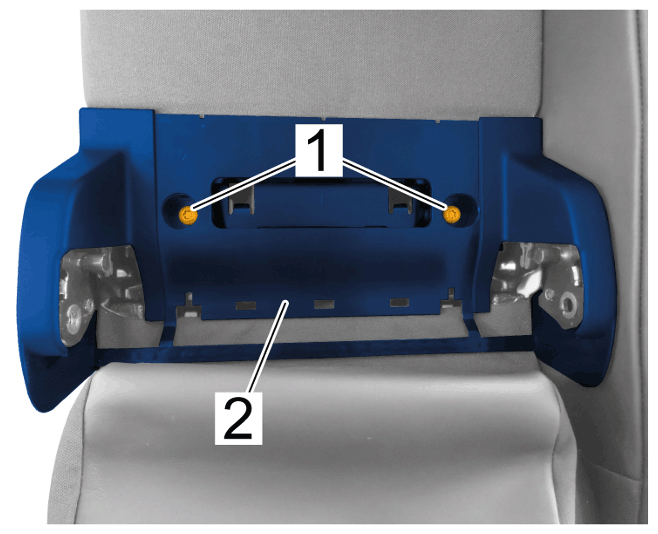

Unscrew screws -1- and remove armrest holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Armrest holder
Remove load-through provision.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Load-through provision

Information

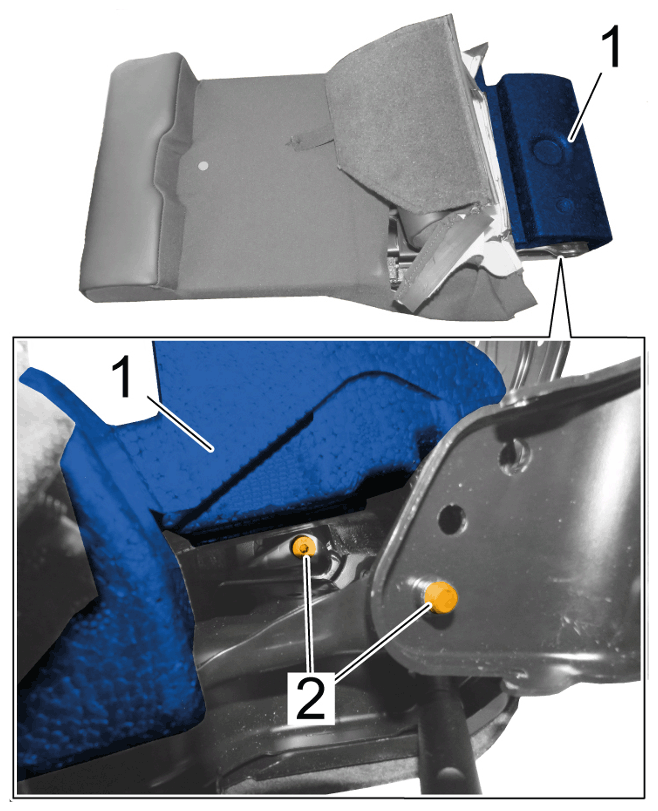

The rear seat cover keeps the moulded part tight.
1. 8.1 Carefully lift up moulded part -1- .
  Information

  Micro-self-locking screws

  Fit new screws following removal.
2. 8.2 Unscrew screws -2- .
3. 8.3 Remove load-through provision.
