Removing Armrest With Cover

1. Fold load-through provision forward.
2. Unscrew and remove screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

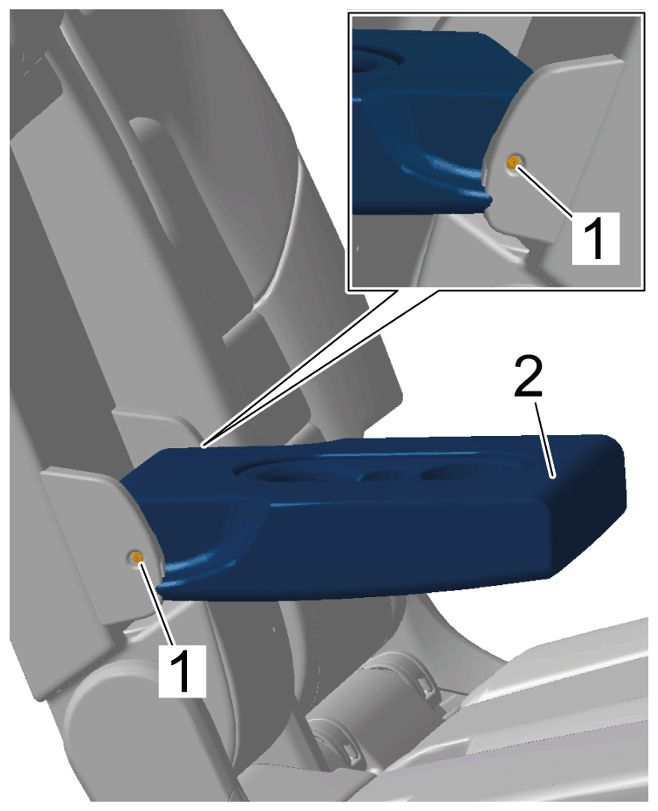

   Screws for armrest

3. Fold load-through provision to the rear.
4. Open armrest with cover -2-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Armrest with cover

Installing armrest with cover

1. Installation is performed in reverse order. Pay particular attention to the following:

Tighten screws to > Tightening torque 7 Nm (5 ftlb.)  .
